| Economy Series ET |
|---|
Actuator
PC Setup Tool D-STEP
|
Related Links
 |
Features

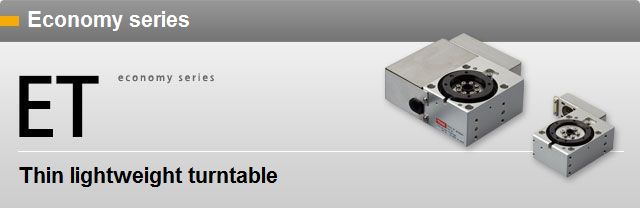

Thin lightweight structure
It realizes thickness reduction and weight reduction while being able to apply loads in any directions including radial load, axial load, and moment load adopting a cross roller ring for the rotation part.
ET product list
*If download fails, right-click on the "2D-CAD(DXF)" button and select "Save target as".
| Motor included or not | Model number | Reduction ratio | Stroke | 2D-CAD |
| TSC specifications | ET20
 |
45 | 330 degrees |
 |
| Multi-turn |
|
|||
| ET35
|
20•30 | 330 degrees |
|
|
| Multi-turn |
|
|||
| Motor not included | ET20
|
45 | 330 degrees |
|
| Multi-turn |
|
|||
| ET35
|
20•30 | 330 degrees |
|
|
| Multi-turn |
|
*If download fails, right-click on the "3D-CAD" button and select "Save target as".
*The downloaded data contains three pieces of data: IGS(.igs), STEP(.stp), and Parasolid(.x_t).
| Motor included or not | Model number | Reduction ratio | Stroke | Origin Position | 3D-CAD |
| TSC specifications | ET20
|
45 | 330 degrees | D00 (CCW) |
 |
| R00 (CW) |
|
||||
| Multi-turn | - |
|
|||
| ET35
|
20 | 330 degrees | D00 (CCW) |
|
|
| R00 (CW) |
|
||||
| Multi-turn | - |
|
|||
| 30 | 330 degrees | D00 (CCW) |
|
||
| R00 (CW) |
|
||||
| Multi-turn | - |
|
|||
| Motor not included | ET20
|
45 | 330 degrees | D00 (CCW) |
|
| R00 (CW) |
|
||||
| Multi-turn | - |
|
|||
| ET35
|
20 | 330 degrees | D00 (CCW) |
|
|
| R00 (CW) |
|
||||
| Multi-turn | - |
|
|||
| 30 | 330 degrees | D00 (CCW) |
|
||
| R00 (CW) |
|
||||
| Multi-turn | - |
|
