Precision Caged Ball Screw High Load Model HBN-K/Model HBN-KA Model HBN-KA 80/100

With the optimal design for high loads, this Ball Screw model achieves a rated load more than twice the conventional type.

  • Long-term maintenance free
  • High speed
  • High-load ball screw
  • No preload
  • Precision positioning (ball screw)

DN value : 120000
Screw shaft diameter (mm) : 80,100

Select display items

Copy item link
Add item to favorites

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

  • Select all
  • Deselect all

Detailed information

    THK Online Services
    Member-Exclusive Content

    These contents can be accessed

    after registering as a member.

    Log in/Register Click here for THK Online Services details

    Benefit 1: Useful features

    • Easy product comparisonsHighlight feature
    • Save items for laterreview Favorites feature

    Benefit 2: Exclusive content

    Products Contents
    LM Guide LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
    Ball Screw Axial clearance, maximum manufacturing length of shaft, etc.
    Actuator Movable part mass, etc.

Optional

Contamination Protection

  • Contamination Protection Seal for Ball Screws Labyrinth seal
  • Contamination Protection Seal for Ball Screws Brush seal
  • Wiper Ring
  • Canvas seal
  • Thin Film Seal
  • Dust Cover for Ball Screws

Lubrication

  • QZ Lubricator

Rustprevention

  • Surface Treatment

Other

  • Dimensions of Each Model with an Option Attached
  • Additional Machining for Shaft Ends

Display result

Detailed information
Dimensional drawing/Dimensional table
Optional

Detailed information

Copy item link
Add item to favorites

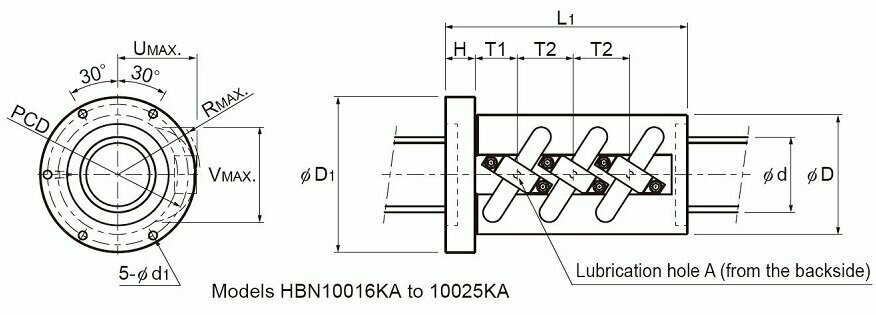

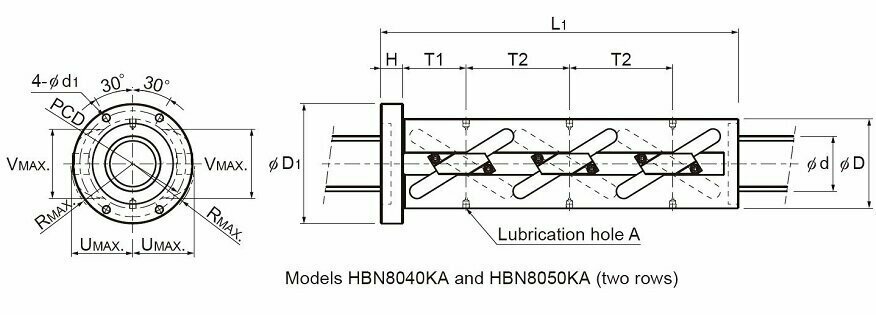

Dimensional drawing/Dimensional table

Copy item link
Add item to favorites
Notes on dimensional table
  • Note 1) The permissible load Fp indicates the maximum axial load that the ball screw can handle. This model is capable of achieving a longer service life than the conventional ball screw under a high load.
  • Note 2) Certain precautions are necessary regarding the assembly method. (See Examples of Assembling Models HBN-V, HBN-K, HBN and SBKH)
  • Note 3) For high-load ball screws, the standard maximum length of the screw shaft is 3000 mm. For lengths greater than this, please contact THK.
  • Note) The rigidity values in the table represent spring constants, each obtained from the load and the elastic deformation under an axial load equal to 30% of the basic axial dynamic load rating (Ca).
    These values do not include the rigidity of the components related to mounting the ball screw nut. Therefore, it is normally appropriate to regard roughly 80% of the value in the table as the actual value.
    If the axial load (Fa) is not 0.3 Ca, the rigidity value (KN) is obtained from the following equation.

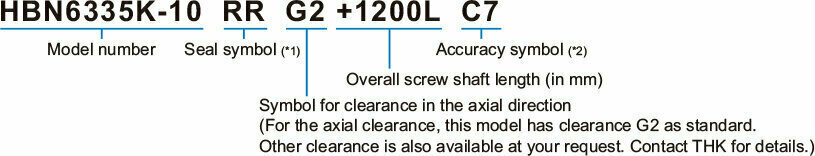

Model Number Coding
