Precision Caged Ball Screw High-Load Ball Screw for Presses Model HBN-KP

The HBN-KP is a ball screw designed for use in press machines.The permissible load has been increased compared to the conventional HBN and HBN-K.

Screw shaft diameter (mm) : 40,63,80,100,120,140

Precautions on Use

Types

Highlight feature tags

Screw shaft diameter (mm) : 40,63,80,100,120,140

Features

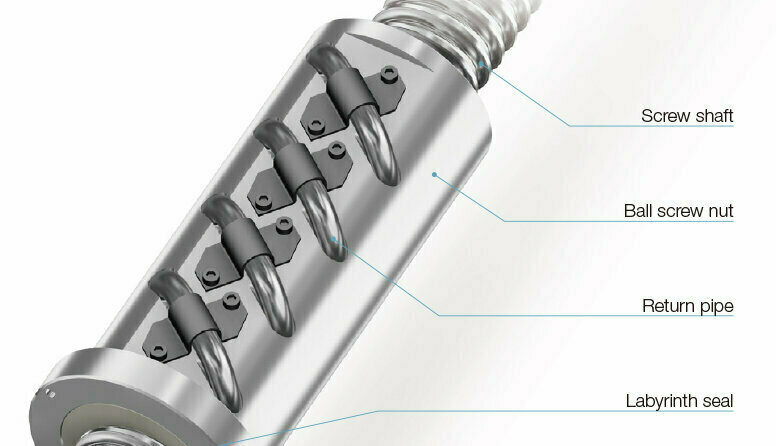

Structure and Features

The HBN-KP is a ball screw designed for use in press machines.The permissible load has been increased compared to the conventional HBN and HBN-K.

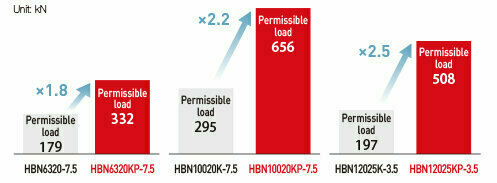

Approximately Doubles the Permissible Load

Increases the permissible load to approximately double that of the conventional HBN and HBN-K.

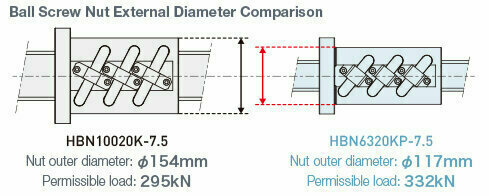

Reduces Equipment Size

Features a high permissible load so it can be used with a smaller shaft diameter than the HBN and HBN-K. As a result, peripheral components and therefore the machine itself can remain compact.

Lineup

Screw shaft outer diameter (mm)	Lead (mm)
Screw shaft outer diameter (mm)	12	20	25	40
ø 40	HBN4012KP
ø 63		HBN6320KP
ø 80		HBN8020KP
ø 100		HBN10020KP		HBN10040KP
ø 120			HBN12025KP
ø 140				HBN14040KP

Detailed information for each model number

Dimensional drawing/Dimensional table
