Precision Caged Ball Screw Model SBK

As a result of adopting the offset preloading method, which shifts two rows of grooves of the ball screw nut, a compact structure is achieved.

  • Long-term maintenance free
  • High speed
  • Large lead
  • Preload
  • Offset preload
  • End-cap type
  • Precision positioning (ball screw)

Screw shaft diameter (mm) : 15,16,20,25,32,36,40,50,55

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long-term maintenance free
  • High speed
  • Large lead
  • Preload
  • Offset preload
  • End-cap type
  • Precision positioning (ball screw)
Model SBK 15 / 16 / 20 / 25 / 32
  • Long-term maintenance free
  • High speed
  • Large lead
  • Preload
  • Offset preload
  • End-cap type
  • Precision positioning (ball screw)

DN value : 160000
Screw shaft diameter (mm) : 15,16,20,25,32

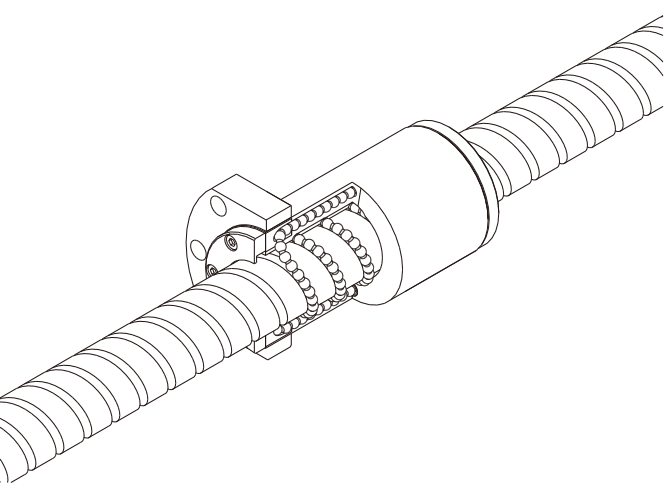

Model SBK 36 / 40 / 50 / 55
  • Long-term maintenance free
  • High speed
  • Large lead
  • Preload
  • Offset preload
  • End-cap type
  • Precision positioning (ball screw)

DN value(36,40,50 / 55) : 210000 / 160000
Screw shaft diameter (mm) : 36,40,50,55

Detailed information for each model number

Copy item link
Add item to favorites

Dimensional drawing/Dimensional table

Copy item link
Add item to favorites
