Full-Ball Type Precision Ball Screw Model BNF-V

The simplest type with a single ball screw nut. It is designed to be mounted using the bolt holes drilled on the flange.

  • High speed
  • No preload
  • Precision positioning (ball screw)

Screw shaft diameter (mm) : 16,20,25,28,32,36,40,45,50

Types

Copy item link
Add item to favorites

Highlight feature tags

  • High speed
  • No preload
  • Return-pipe type
  • Return-piece
  • Precision positioning (ball screw)
Model BNF-V Small
  • High speed
  • No preload
  • Return-piece
  • Precision positioning (ball screw)

DN value : 100000
Screw shaft diameter (mm) : 16,20,25,28,32

Model BNF-V Medium 25 / 28 / 32 / 36 / 40
  • High speed
  • No preload
  • Return-pipe type
  • Precision positioning (ball screw)

DN value : 130000
Screw shaft diameter (mm) : 25,28,32,36,40

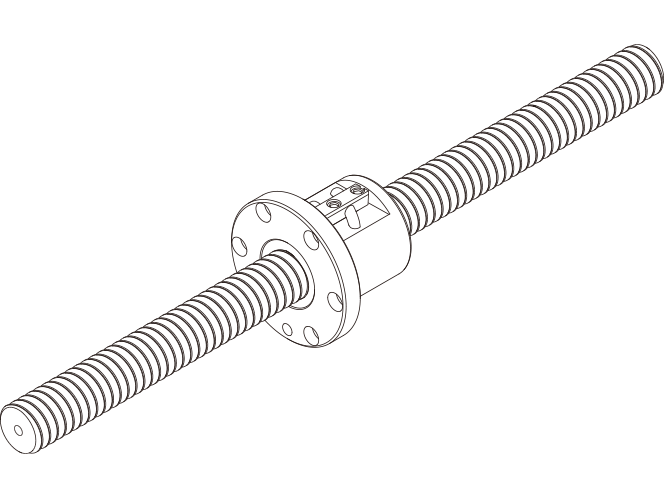

Model BNF-V Medium 45 / 50
  • High speed
  • No preload
  • Return-pipe type
  • Precision positioning (ball screw)

DN value : 130000
Screw shaft diameter (mm) : 45,50
