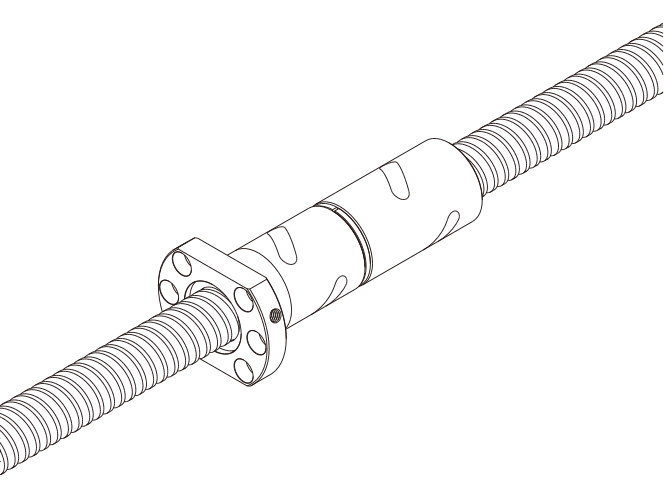

Full-Ball Type Precision Ball Screw Slim nut Model DKN
A deflector-type Ball Screw in which a preload is provided via a spacer between the two combined ball screw nuts to achieve a below-zero axial clearance (under a preload).
Screw shaft diameter (mm) : 40,50,63
Types
Highlight feature tags
- Compact
- Preload
- Deflector type
- Double nut
- Slim nut
- Precision positioning (ball screw)
- Double nut preload
- Compact
- Preload
- Deflector type
- Double nut
- Slim nut
- Precision positioning (ball screw)
- Double nut preload
DN value : 70000
Screw shaft diameter (mm) :
40,50,63
Detailed information for each model number
Dimensional drawing/Dimensional table
