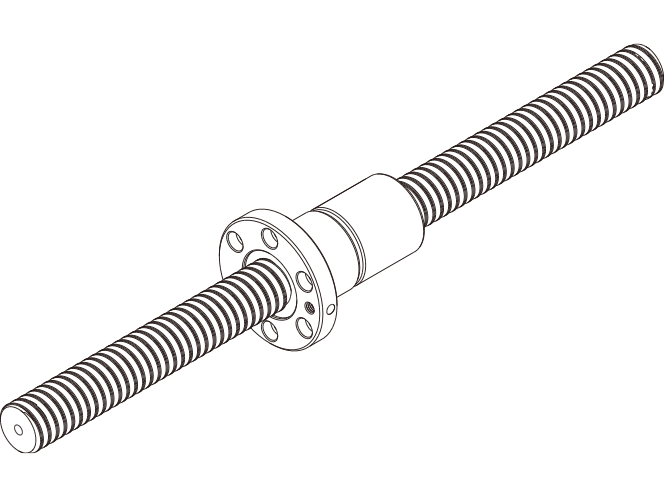

Full-Ball Type Rolled Ball Screw Slim nut Model JPF
This Ball Screw achieves zero-backlash through a constant preloading method by shifting the phase with the central part of a simple nut as the spring structure.
Screw shaft diameter (mm) : 14,16,20,25,28,32,36,40
Types
Highlight feature tags
- Compact
- Preload
- Constant-pressure preload
- Deflector type
- Slim nut
- Transport (ball screw)
- Compact
- Preload
- Constant-pressure preload
- Deflector type
- Slim nut
- Transport (ball screw)
DN value : 50000
Screw shaft diameter (mm) :
14,16,20,25,28,32,36,40
Detailed information for each model number
Dimensional drawing/Dimensional table
