High Torque Caged Ball Spline Model SLS Model SLS-L
A heavy-load type with the same outer diameter as model SLS and a longer spline nut.

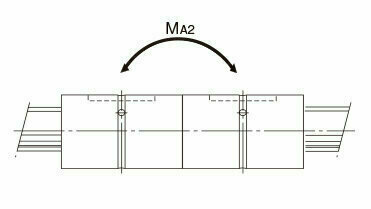

It is optimal in cases where a large torque is applied in a small space, and in cases where an overhang load or moment is applied.
basic load ratings(kN) : Basic dynamic load rating 21.7 to 219.8 / Basic static load rating 29.0 to 238.4
Spline shaft diameter (mm) :
25,30,40,50,60,70,80,100
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Material and Surface Treatment
- Contamination Protection
Lubrication
- Lubrication
- QZ Lubricator
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

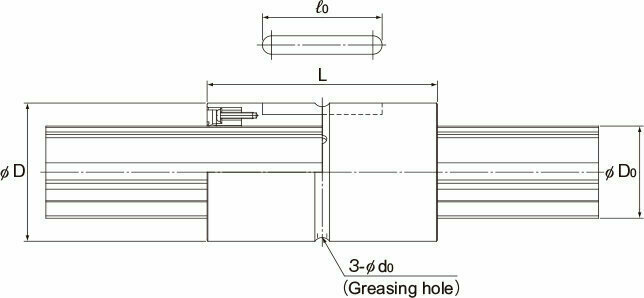

Dimensional drawing/Dimensional table

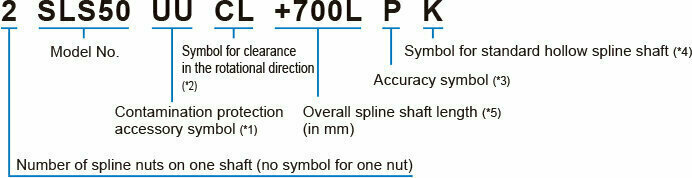

Model Number Coding
