High Torque Caged Ball Spline Model SLS Model SLS
The circumference of the spline nut is shaped in a straight cylinder.
Using a key, this model can be secured to the housing, or transmit a torque.
basic load ratings(kN) : Basic dynamic load rating 18.2 to 87.8 / Basic static load rating 22.5 to 103.0
Spline shaft diameter (mm) :
25,30,40,50,60
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
- Dimensional drawing/Dimensional table

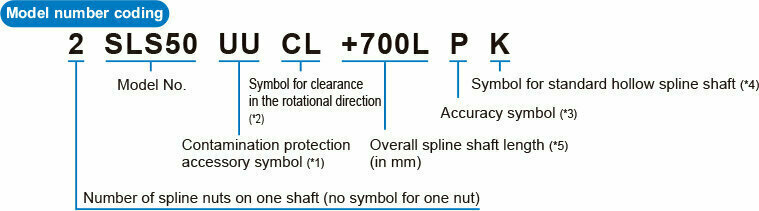

- Model Number Coding
