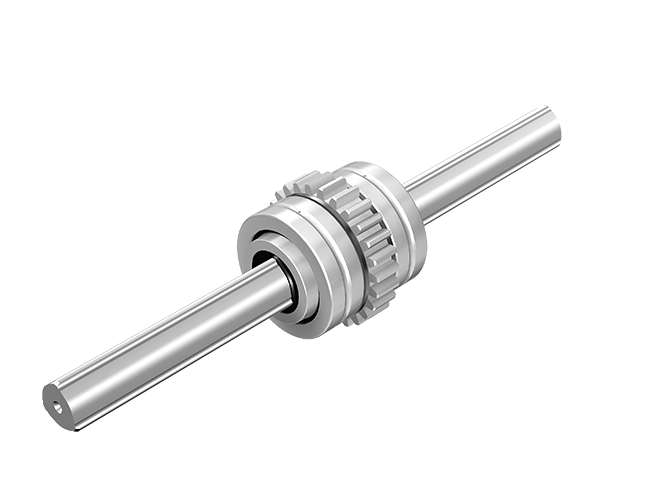

Rotary Ball Spline with Gear Rotary with Gears Model LBG
These models are unit types based on model LBR, but have gear teeth on the flange circumference and radial and thrust bearings on the spline nut, all compactly integrated.It is optimal for a torque transmission mechanism with spline nut drive.
Spline shaft diameter (mm) : 20,25,30,40,50,60,85
Types
Highlight feature tags
- Rotary and linear motions
- Rotary type
- With gear
- Solid spline shaft
- Hollow spline shaft
- Rotary and linear motions
- Rotary type
- With gear
- Solid spline shaft
- Hollow spline shaft
basic load ratings(kN) : Basic dynamic load rating 9.4 to 119 / Basic static load rating 20.1 to 213
Spline shaft diameter (mm) :
20,25,30,40,50,60,85
