High-Speed Roller Ring High-Speed Roller Ring Model RT
The Model RT uses rollers as a rolling element for higher rigidity. It also has two axial rows of rollers and one radial row of rollers suited for high-speed rotation. This model can be used for both outer and inner ring rotation.
Types
Highlight feature tags
- High rigidity
- High speed
- Inner ring rotation
- Outer ring rotation
- Large load capacity
- Rotation accuracy

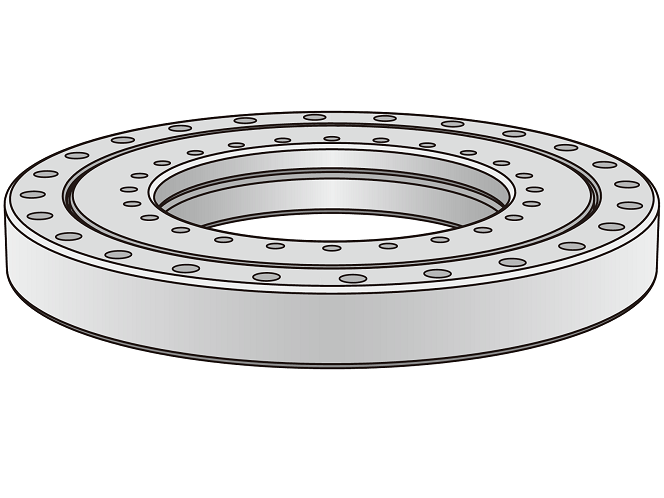

Model RT
- High rigidity
- High speed
- Inner ring rotation
- Outer ring rotation
- Large load capacity
- Rotation accuracy
Basic load rating(kN)：Basic dynamic load rating 41.7 to 187 ／ Basic static load rating 90.6 to 548
Detailed information for each model number
Dimensional drawing/Dimensional table
