Full-Ball LM Guide Cross LM Guide Model CSR
This model is an integral type of LM Guide that squares an internal structure similar to model HSR, which has a proven track record and is highly reliable, with another and uses two LM rails in combination.
Size : 15,20,25,30,35,45

Types
Highlight feature tags

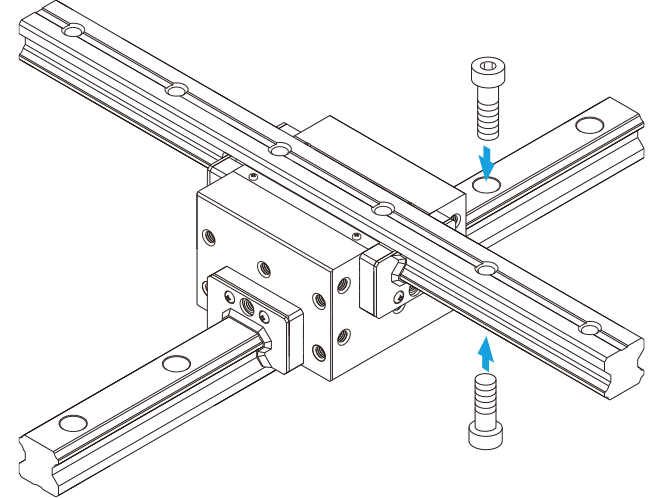

- Long block LM Guide

Basic load rating (kN): Basic dynamic load rating 19.8 to 40.5 / Basic static load rating 27.4 to 53.7
Size :
20,25,30

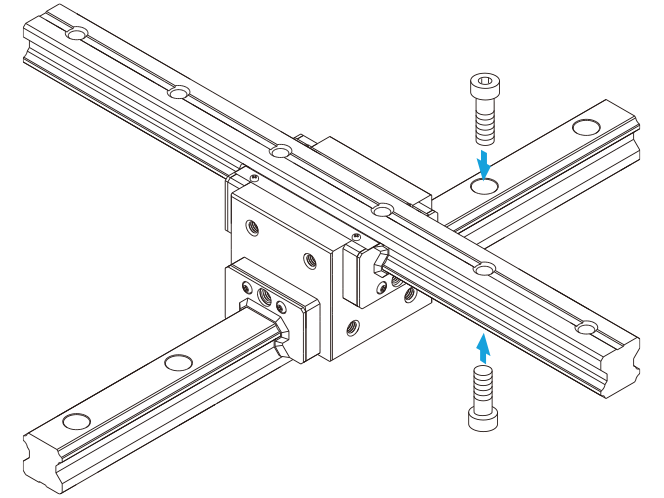

- Long block LM Guide
Basic load rating (kN): Basic dynamic load rating 10.9 to 100 / Basic static load rating 15.7 to 135
Size :
15,20,25,30,35,45
Features

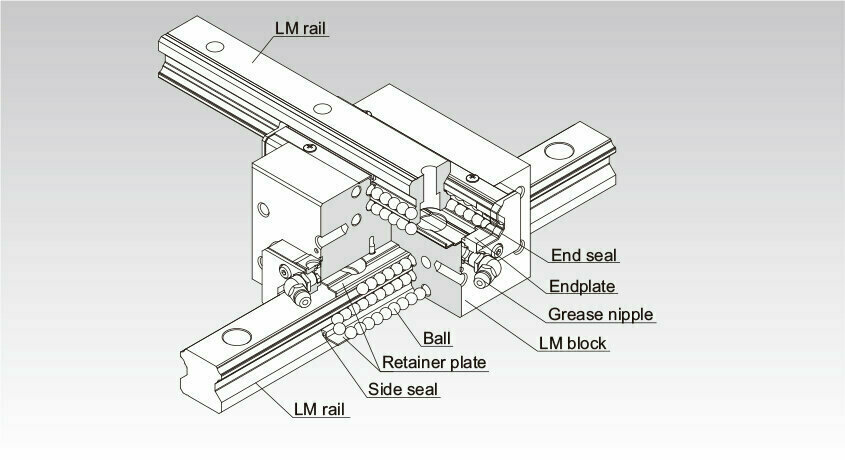

Structure and Features

Balls roll in four rows of raceways precision-ground on a LM rail and a LM block, and endplates incorporated in the LM block allow the balls to circulate. Since retainer plates hold the balls, they do not fall off even if the LM rail is pulled out. This model is an integral type of LM Guide that squares an internal structure similar to model HSR, which has a proven track record and is highly reliable, with another and uses two LM rails in combination. It is machined with high precision so that the perpendicularity of the hexahedron of the LM block is within 2μm per 100 mm in error. The two rails are also machined with high precision in relative straightness. As a result, extremely high accuracy in orthogonality is achieved. Since an orthogonal LM system can be achieved with model CSR alone, a conventionally required saddle is no longer necessary, the structure for X-Y motion can be simplified and the whole system can be downsized.
4-way Equal Load
Each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.
High Rigidity
Since balls are arranged in four rows in a well-balanced manner, this model is stiffagainst a moment, and smooth straight motion is ensured even a preload is applied to increase the rigidity. The rigidity of the LM blocks is 50% higher than that of a combination of two HSR LM blocks secured together back-to-back with bolts. Thus, CSR is an optimal LM Guide for building an X-Y table that requires high rigidity.

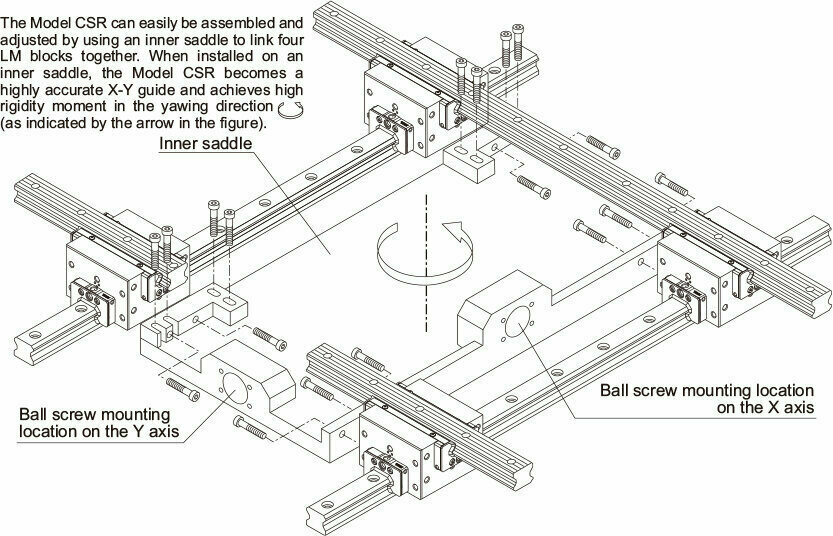

Drawing of Using an Inner Saddle

Detailed information for each model number
Dimensional drawing/Dimensional table
