Full-Ball LM Guide Curved LM Guide Model HCR

An LM Guide capable of performing larger circular motion than rotary bearings.

  • Circular arc
  • 4-way equal load
  • Curved guide

Size : 12,15,25,35,45,65

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Flange
  • Bolts mounted from above
Model HCR
  • Flange
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 4.7 to 141 / Basic static load rating 8.53 to 215
Size : 12,15,25,35,45,65

Features

Copy item link
Add item to favorites

Structure and Features

Copy item link
Add item to favorites

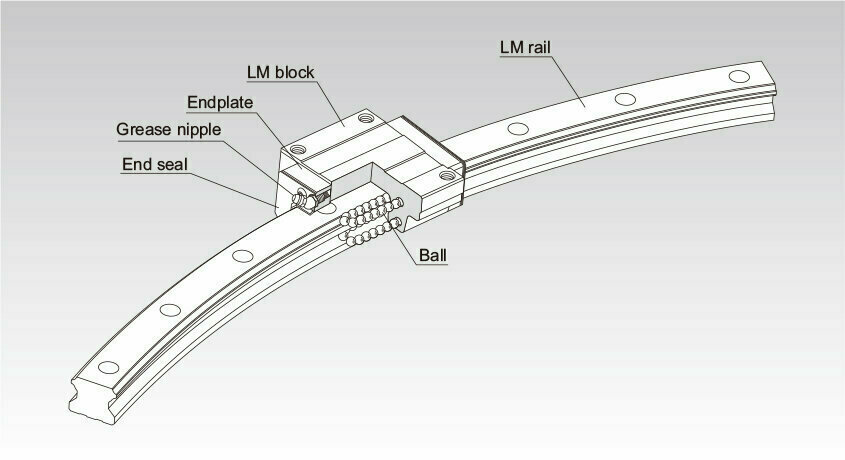

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplates incorporated in the LM block allow the balls to circulate. With a structure that is basically the same as four-way equal load type LM Guide model HSR, which has a proven track record, this R Guide is a new concept product that allows highly accurate circular motion.

Freedom of Design

Multiple LM blocks can individually move on the same rail. By arranging LM blocks on the load points, efficient structural design is achieved.

Shortened Assembly Time

This model allows clearance-free, highly accurate circular motion as opposed to sliding guides or cam followers. You can easily assemble this model simply by mounting the LM rail and LM blocks with bolts.

Allows Circular Motion of 5m or Longer

It allows circular motion of 5 m or longer, which is impossible with swivel bearings. In addition, use of this model makes it easy to assemble, disassemble and reassemble equipment that circularly moves.

Capable of Receiving a Load in Any Direction

This model is capable of receiving loads in all directions since it has a structure that is basically the same as model HSR.
