LM Guide with Linear Encoder

The global standard Model SHS and THK linear encoder are integrated into one compact unit.

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long-term maintenance free
  • High accuracy
  • Self-adjusting capability
  • 4-way equal load
  • Linear encoder

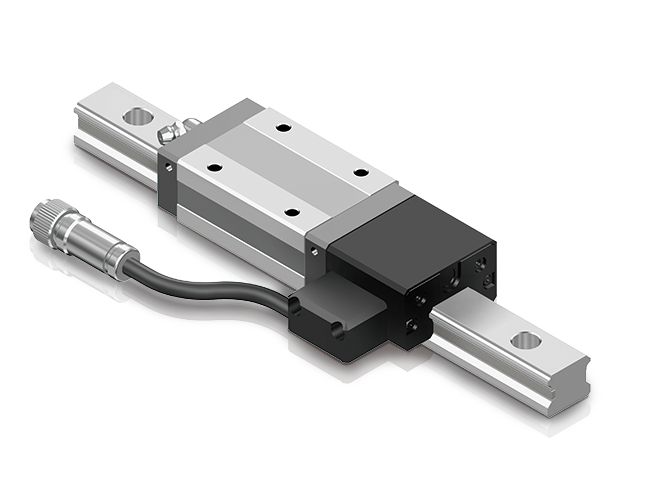

Model SHS-LE with Linear Encoder
  • Long-term maintenance free
  • High accuracy
  • Self-adjusting capability
  • 4-way equal load
  • Linear encoder

Size : 20,25,30,35,45

Features

Copy item link
Add item to favorites
  • Combines the global standard Model SHS and a THK linear encoder
  • Makes design and assembly easier
  • Enables compact machine designs

Makes design and assembly easier because magnetic scale is not required
Enables compact machine designs

Components/Structure

Copy item link
Add item to favorites

Shapes of Connector and Pin assignment

Copy item link
Add item to favorites

Pin assignment

Pin signal

Encoder

Extension cable (output side)

A=+5V

2=SG

B=PA

5=/PB

C=/PA

6=/PA

D=SG

7=+5V

E=PB

8=+5V

F=/PB

9=SG

G= -

13=PB

H=FG

14=PA

Linear Encoder Specifications

Copy item link
Add item to favorites

Encoder

Incremental magnetic encoder

Resolution(μm)

1/5/10

Positioning repeatability

± Resolution or less

Power supply

5V±5%

Output

Incremental A-B phase differential output

EIA-422 line driver

Encoder head protection
rating

IP67

Cable length (mm)

500 (extension cables are available)

Standard compliance

CE
