LM Guide with Linear Encoder Model SHS-LE with Linear Encoder

Combines the global standard Model SHS and a THK linear encoder

  • Long-term maintenance free
  • High accuracy
  • Self-adjusting capability
  • 4-way equal load
  • Linear encoder

Size : 20,25,30,35,45

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below
  • Bolts mounted from above
Model SHS-LE-C
  • Flange
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 20,25,30,35,45

Model SHS-LE-V
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 20,25,30,35,45

Model SHS-LE-R
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 25,30,35,45

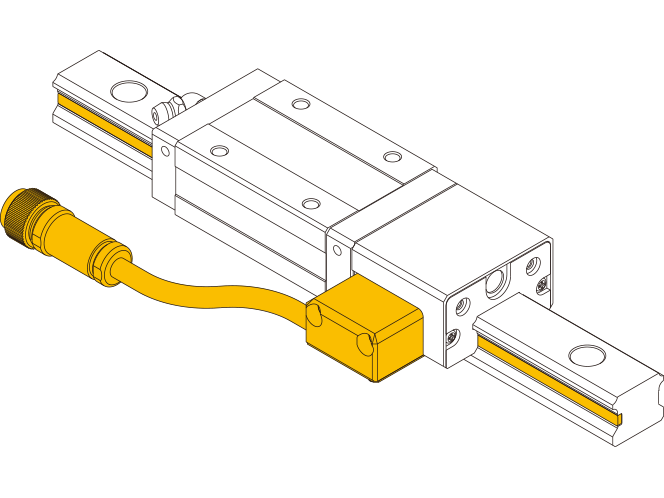

Model SHS-LE-LC
  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 20,25,30,35,45

Model SHS-LE-LV
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 20,25,30,35,45

Model SHS-LE-LR
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating - / Basic static load rating -
Size : 25,30,35,45

Detailed information for each model number
