Linear Bushing Flange-less Type Models LM-L/LM-NL
Incorporates two standard type retainers, giving it a large net rated load.
Basic load rating N : Basic dynamic load rating 88.2 to 4710 / Basic static load rating 108 to 10000
Shaft Diameter (mm) :
3,4,5,6,8,10,12,13,16,20,25,30,35,40,50,60
Sizes 35 to 60 of Model LM-L will no longer be produced as of January 23, 2026. Please see the discontinued product list for information about replacements.
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

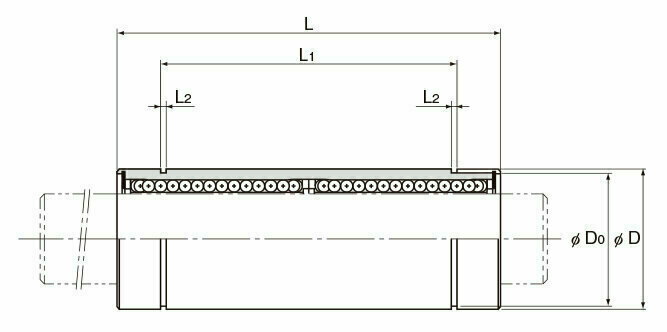

- Dimensional drawing/Dimensional table
