Linear Bushing Cut Flange
There are two types: standard type and long type.
Shaft Diameter (mm) : 6,8,10,12,13,16,20,25,30
Types
Highlight feature tags
- Long type
- Oval flange
- Fitted flange
- Center flange
- Resin
- Stainless steel
- Oval flange
- Resin
Basic load rating N : Basic dynamic load rating 206 to 1570 / Basic static load rating 265 to 2750
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25,30
- Oval flange
- Resin
- Stainless steel
Basic load rating N : Basic dynamic load rating 206 to 1570 / Basic static load rating 265 to 2750
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25,30
- Long type
- Oval flange
- Resin
Basic load rating N : Basic dynamic load rating 324 to 2490 / Basic static load rating 529 to 5490
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25,30
- Long type
- Oval flange
- Resin
- Stainless steel
Basic load rating N : Basic dynamic load rating 324 to 2490 / Basic static load rating 529 to 5490
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25,30
- Oval flange
- Fitted flange
- Resin
Basic load rating N : Basic dynamic load rating 206 to 980 / Basic static load rating 265 to 1570
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25
- Long type
- Oval flange
- Fitted flange
- Resin
Basic load rating N : Basic dynamic load rating 324 to 1560 / Basic static load rating 529 to 3140
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25
- Long type
- Oval flange
- Center flange
- Resin
Basic load rating N : Basic dynamic load rating 324 to 1560 / Basic static load rating 529 to 3140
Shaft Diameter (mm) :
6,8,10,12,13,16,20,25
Detailed information for each model number
Toggle chart
- Model LMH
- Model LMH-M
- Model LMH-L
- Model LMH-ML
- Model LMIH

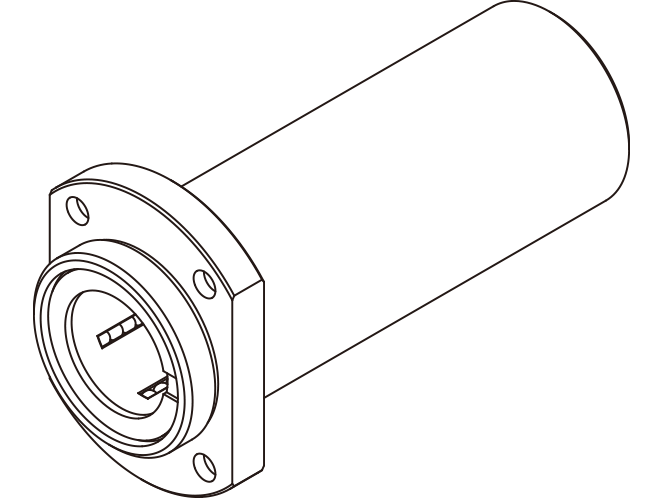

- Model LMIH-L
- Model LMCH-L
