LM Roller Model LRA / LRA-Z

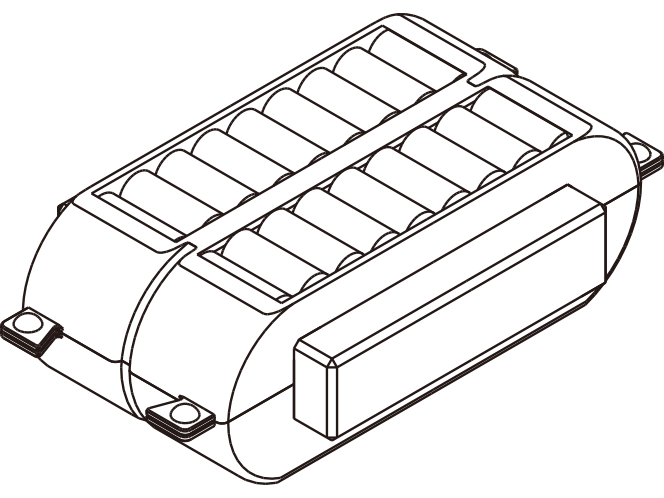

Just like model LR, this model is also designed to be fit into a groove. It is a compact type that can be mounted using fixture model SM or SE and bolts.
A lighter type that uses a resin retainer and is designed to be mounted in the same manner as model LRA. Since it has a groove for installing a seal, a special rubber seal with a high contamination protection effect can easily be attached. In addition, this model is capable of high-speed traveling at 1 m/s.
Types
Highlight feature tags
- High accuracy
- Prevention of rollers from skewing
- Ultra-heavy loads
- High accuracy
- Prevention of rollers from skewing
- Ultra-heavy loads
Basic load rating kN : Basic dynamic load rating 21.6 to 285 / Basic static load rating 39.9 to 577
Detailed information for each model number
Dimensional drawing/Dimensional table
