Cam Follower with a Tapped Hole for Greasing Model CFT Model CFT
Basically the same as the popular type Cam Follower, this model is provided with tapped holes for piping on the stud head and the thread. It is optimal for locations where an integrated piping for greasing is required.
Basic load rating kN with cage: Basic dynamic load rating 3.59 to 45.4 / Basic static load rating 3.58 to 87.6
Basic load rating kN full rollers : Basic dynamic load rating 6.94 to 67.6 / Basic static load rating 8.5 to 145
Stud diameter (mm) :
6,8,10,12,16,18,20,24,30
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

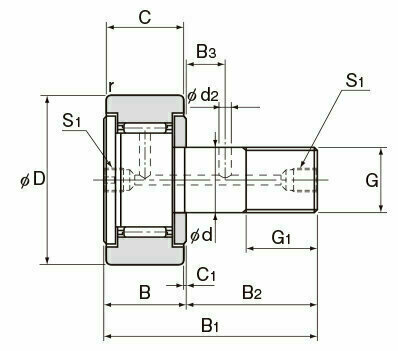

- Dimensional drawing/Dimensional table
- Cam Follower with a Tapped Hole for Greasing Model CFT
- Accuracy Standards
- Radial Clearance
Optional
Contamination Protection
- With/without a seal
Lubrication
- Grease nipple
Rustprevention
- Type of material
Other
- Cam Follower Accessories
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information
- Optional
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member login is required to access Designer, Life Calculator, and 2D/3D CAD donwnloads. Catalogs and manuals are available to everyone.
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer1 | Life Calculator1 | CAD download1 | Catalog download | Manual download |
|---|---|---|---|---|---|
| CFT 6 |  |  |  |  | |
| CFT 6R | | | |||
| CFT 8 | | | |||
| CFT 8R | | | |||
| CFT 10 | | | |||
| CFT 10R | | | |||
| CFT 10-1 | | | |||
| CFT 10-1R | | | |||
| CFT 12 | | | |||
| CFT 12R | | | |||
| CFT 12-1 | | | |||
| CFT 12-1R | | | |||
| CFT 16 | | | |||
| CFT 16R | | | |||
| CFT 18 | | | |||
| CFT 18R | | | |||
| CFT 20 | | | |||
| CFT 20R | | | |||
| CFT 20-1 | | | |||
| CFT 20-1R | | | |||
| CFT 24 | | | |||
| CFT 24R | | | |||
| CFT 24-1 | | | |||
| CFT 24-1R | | | |||
| CFT 30 | | | |||
| CFT 30R | | | |||
| CFT 30-1 | | | |||
| CFT 30-1R | | | |||
| CFT 30-2 | | | |||
| CFT 30-2R | | |
1These tools are not available for guest members.
