Precision Caged Ball Screw Model SBK
A compact structure is achieved by adopting the offset preload method, which shifts two rows of grooves of the ball screw nut.
Screw shaft diameters (mm) : 15,16,20,25,32,36,40,50,55
Types
Highlight feature tags
- Long-term maintenance free
- High speed
- Large lead
- Preload
- Offset preload
- End-cap type
- Precision positioning (ball screw)
- Long-term maintenance free
- High speed
- Large lead
- Preload
- Offset preload
- End-cap type
- Precision positioning (ball screw)
DN value: 130,000
Screw shaft diameters (mm) :
15,16,20,25,32
- Long-term maintenance free
- High speed
- Large lead
- Preload
- Offset preload
- End-cap type
- Precision positioning (ball screw)
DN value (36, 40, 50/55): 210,000/160,000

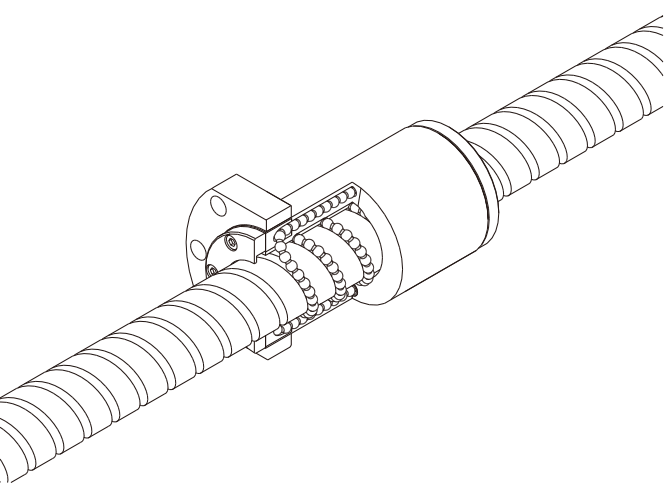

Screw shaft diameters (mm) :
36,40,50,55
Detailed information for each model number
Toggle chart
- SBK Small With Preload
- Model SBK 36/40/50/55
