Precision Caged Ball Screw High-Speed Model SBN-V
The circulation structure allows the balls to be picked up in a direction tangential to the shaft. The circulation components have been strengthened, increasing the DN value to 160,000 (small type: 130,000).
Screw shaft diameters (mm) : 16,20,25,28,32,36,40,45,50
Types
Highlight feature tags
- Long-term maintenance free
- High speed
- Preload
- Offset preload
- Return-pipe type
- Return-piece
- Precision positioning (ball screw)
- Long-term maintenance free
- High speed
- Preload
- Offset preload
- Return-pipe type
- Return-piece
- Precision positioning (ball screw)
DN value: 130,000
Screw shaft diameters (mm) :
16,20,25,28,32
- Long-term maintenance free
- High speed
- Preload
- Offset preload
- Return-pipe type
- Return-piece
- Precision positioning (ball screw)
DN value: 160,000
Screw shaft diameters (mm) :
25,28,32,36,40,45,50
Detailed information for each model number
Toggle chart
- Model SBN-V Small

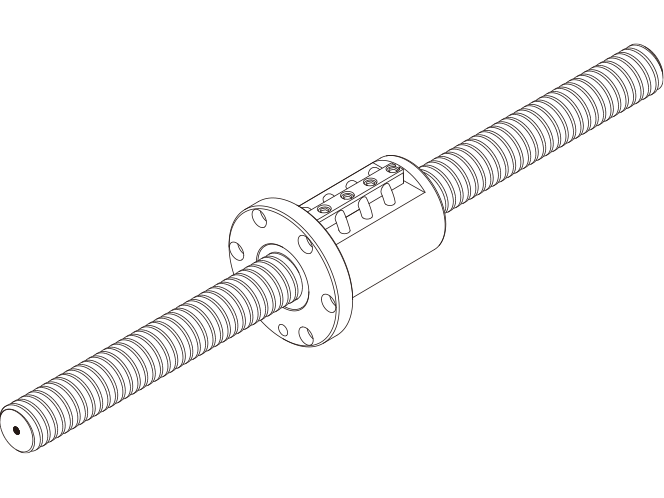

- Model SBN-V Medium
