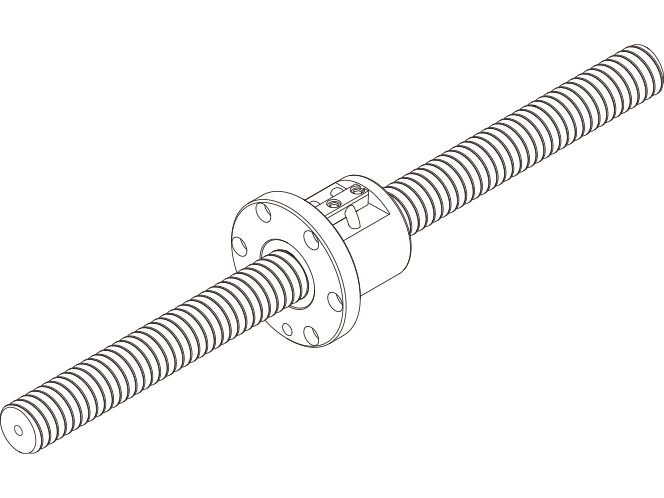

Full-Ball Type Precision Ball Screw Model BNF-V
The simplest type with a single ball screw nut. It is designed to be mounted using the bolt holes drilled on the flange.
Screw shaft diameter (mm) : 16,20,25,28,32,36,40,45,50
Types
Highlight feature tags
- High speed
- No preload
- Return-pipe type
- Return-piece
- Precision positioning (ball screw)
- High speed
- No preload
- Return-piece
- Precision positioning (ball screw)
DN value : 100000
Screw shaft diameter (mm) :
16,20,25,28,32
- High speed
- No preload
- Return-pipe type
- Precision positioning (ball screw)
DN value : 130000
Screw shaft diameter (mm) :
25,28,32,36,40
- High speed
- No preload
- Return-pipe type
- Precision positioning (ball screw)
DN value : 130000
Screw shaft diameter (mm) :
45,50
