Full-Ball Type Precision Ball Screw High-Speed Ball Screw for Machine Tools Model BSM

Our new ball circulation system achieves even higher speeds (DN value 170,000) Increases the speed of equipment

  • Compact
  • For machine tools
  • High speed
  • Preload
  • Offset preload
  • Precision positioning (ball screw)

Screw shaft diameter (mm) : 36,40,45,50,63

Product Search

Click Here for Product Tag Search

Precautions on Use

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Compact
  • For machine tools
  • High speed
  • Preload
  • Precision positioning (ball screw)
Model BSM
  • Compact
  • For machine tools
  • High speed
  • Preload
  • Precision positioning (ball screw)

DN value : 170000
Screw shaft diameter (mm) : 40,45,50,63

BSM-B (Slim Nut Type)
  • Compact
  • For machine tools
  • High speed
  • Preload
  • Precision positioning (ball screw)

DN value : 170000
Screw shaft diameter (mm) : 36,40,45,50

Features

Copy item link
Add item to favorites

High-speed performance

Copy item link
Add item to favorites

Significantly improves the DN value with a newly developed circulation structure.

DN value greatly improved from 130,000 in conventional products to 170,000.
Utilizes a large lead to meet high-speed performance demands.
Maximum feed speed of 121 m/min (for the BSM4030-6)

Maximum Feed Speed
Unit: m /min
Screw shaft outer
diameter (mm)		 Lead (mm)
16 20 25 30
ø 36 - 90 - -
ø 40 65 81 101 121
ø 45 58 73 90 -
ø 50 52 66 82 98
ø 63 41 - - -

Design that responds to the performance needs of machine tools

Copy item link
Add item to favorites

Improves load capacity through the groove design.

The BSM improves load capacity with a unique groove design and double groove structure.

Compact with high rigidity

Copy item link
Add item to favorites

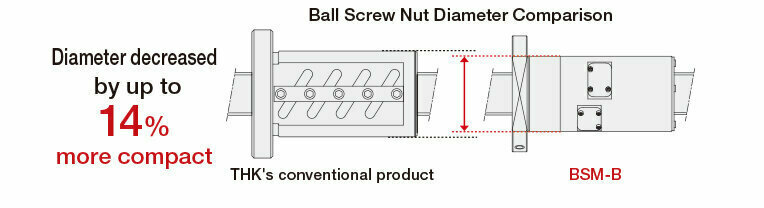

Achieves higher rigidity and a more compact nut diameter than our conventional products.

The BSM-B conserves space with a slimmer nut compared to our conventional products. Rigidity was also improved by extending the overall length and increasing the number of loaded circuits.

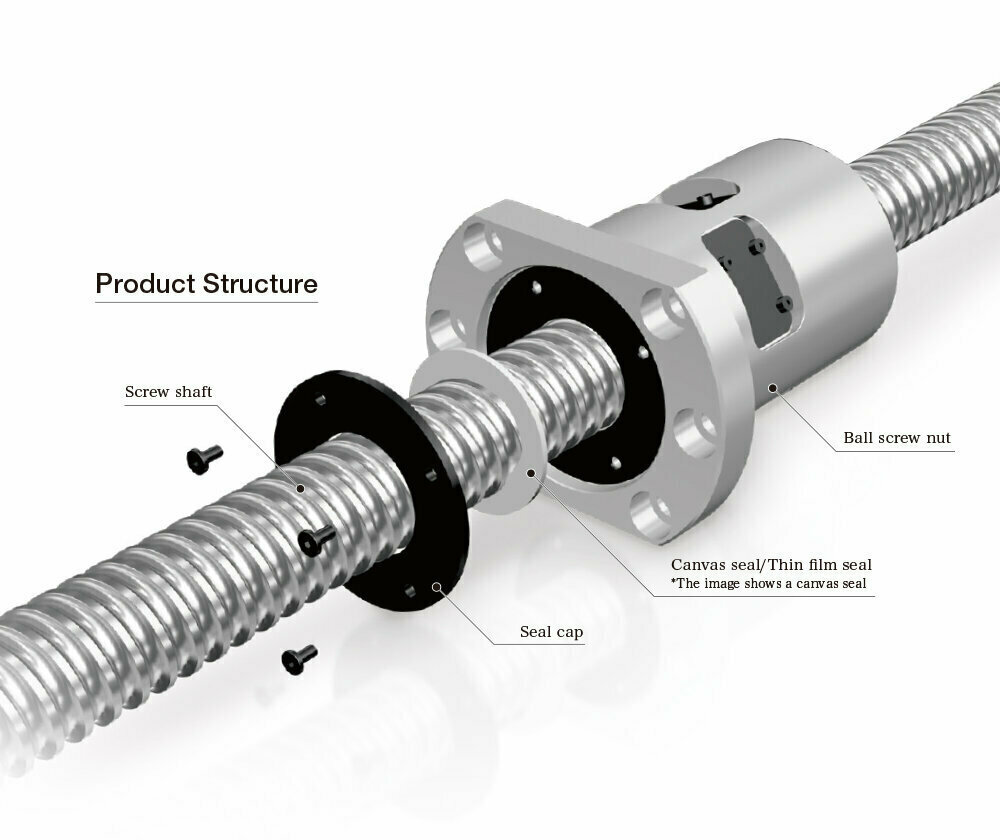

Product Structure

Copy item link
Add item to favorites

BSM Lineup

Copy item link
Add item to favorites
Screw shaft
outer diameter		 Lead
16 20 25 30
ø 36 - ○ - -
ø 40 ● ●○ ●○ ●○
ø 45 ● ●○ ●○ -
ø 50 ● ●○ ●○ ●○
ø 63 ● - - -

● : BSM ○ : BSM-B (Slim Nut Type)
