ISO 3408 Compliant EBB-V
In this ISO standard compliant ball screw, load-bearing balls roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area, performing infinite rolling motion.
Two types of nuts are available: Model EBB-V with oversized-ball preload or no preload, and Model EPB-V with offset preload.
Screw shaft diameter (mm) : 16,20,25,28,32,36,40,50,63,80
Types
Highlight feature tags
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
DN value: 130,000
Screw shaft diameter (mm) :
16,20,25,28,32,36
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
DN value: 130,000
Screw shaft diameter (mm) :
40,50,63,80
Detailed information for each model number
Toggle chart
- Model EBB-V 16/20/25/28/32/36

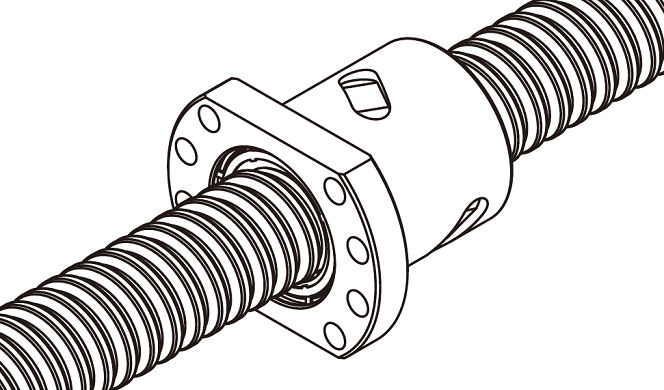

- Model EBB-V 40/50/63/80
