ISO 3408 Compliant Compact Type SDA-V/SDA-VZ

This ball screw contains newly developed circulation components that give it an ideal ball circulation structure (maximum DN value: 180,000). The nut dimensions conform to DIN standards (DIN69051). Furthermore, the use of the newly developed thin film seal reduces the length of the nut, achieving more compact design for devices. This is the full-ball type version of the Model SDA-V (maximum DN value: 180,000).

Screw shaft diameters (mm) : 10,12,14,15,16,20,25,28,31,32,36,38,40,45,50

Handling Precautions

Types

Highlight feature tags

DN value: 180,000
Screw shaft diameters (mm) : 10,12,14,15,16

DN value: 180,000
Screw shaft diameters (mm) : 20,25

DN value: 180,000
Screw shaft diameters (mm) : 28,31,32,36,38,40

DN value: 180,000
Screw shaft diameters (mm) : 45,50

Features

High Speed

Circulation components pick up balls in the tangential direction to achieve a maximum rotational speed of 5,000 min^-1 (DN value: 180,000). Torque remains stable even during long periods of high-speed operation.

Conforms to DIN Standards

The outer diameter is up to 30% more compact than previous THK products, enabling compact machine designs.
Nut dimensions conform to ISO standards (ISO 3408).

Picks Up Balls in the Tangential Direction

Newly developed circulation components enable an ideal ball circulation structure.

Model SDA-V/SDAN-V Lineup

A diverse product lineup is available to meet your varied needs. Full-Ball types are also available.

●: Model SDA-V
■: Model SDAN-V

Lead Shaft diameter	4	5	6	8	10	12	16	20	25	30	32	36	40	50
10	●	●			●
12		●			●			●		●
14		●
15		●			●			●		●
16		●			●		●
20	●	●			●			●		●			●
25		●			●			●	●	●				●
28			●
31					●■	●■	●■	●■			●
32		●■	■	■	●■	■	■	■
36			■		●■	●■	●■	●■				●
38					●■	●■	●■	●■	●	●			●
40				■	■	■	■	■
45					●■	●■	●■	●■	●	●			●
50					●■	●■	●■	●■	●■	●■			●■	●
55					■	■	■	■
63					■	■	■	■	■	■			■

■: Additional models

The above chart is the lineup as of October 2022.

Detailed information for each model number

Toggle chart

Models SDA-V/SDA-VZ 10/12/14/15/16
Models SDA-V/SDA-VZ 20/25
Models SDA-V/SDA-VZ 28/31/32/36/38/40

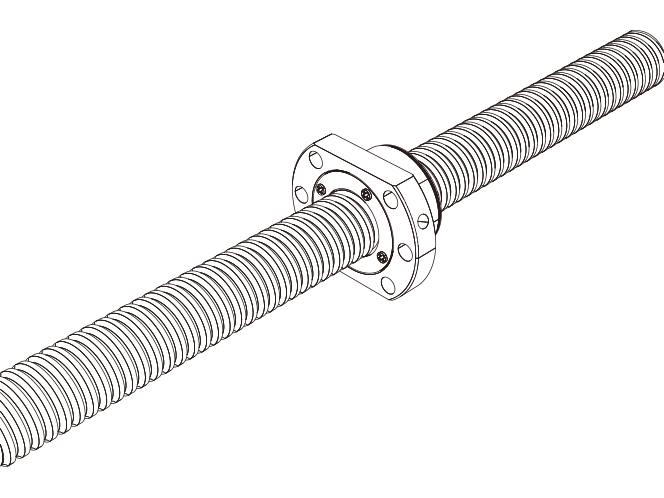

Models SDA-V/SDA-VZ 45/50
