Full-Ball Type Rolled Ball Screw Standard-Nut Model BTK-V

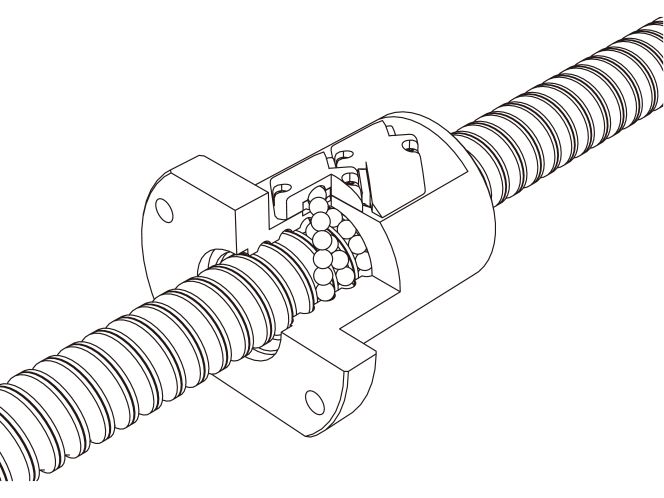

This is a compact, round-type ball screw with a return pipe incorporated into the ball screw nut. The flange is cut flat at the top and bottom, allowing the shaft center to be positioned low.
Screw shaft diameters (mm) : 10,12,14,16,18,20,25,28,32,36,40,45,50
Types
Highlight feature tags
- No preload
- Return-pipe type
- Transport (ball screw)
- No preload
- Return-pipe type
- Transport (ball screw)
DN value: 100,000
Screw shaft diameters (mm) :
10,12,14,16,18,20,25,28,32,36,40,45,50
Detailed information for each model number
Toggle chart
- Model BTK-V
