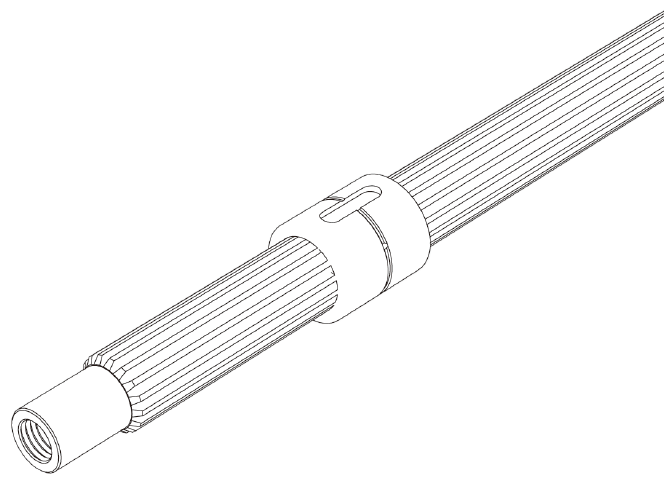

Spline Nut Model DP
Spline Nut models DP are low price bearings that are made of a special alloy formed by die casting and use highly accurate spline shafts as the core.
Spline shaft diameter (mm) : 12,15,17,20,25,30,35,40,45,50
Types
Highlight feature tags
- Wear resistance
- Cylindrical type
Model DP
- Wear resistance
- Cylindrical type
Spline shaft diameter (mm) : 12,15,17,20,25,30,35,40,45,50
Detailed information for each model number
Dimensional drawing/Dimensional table
