Spline Nut Model DPM Model DPM
Spline Nut model DPM are low price bearings that are made of a special alloy formed by die casting and use highly accurate spline shafts as the core.
Spline shaft diameter (mm) : 12,15,17,20,25,30,35,40,45,50
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information
Detailed information

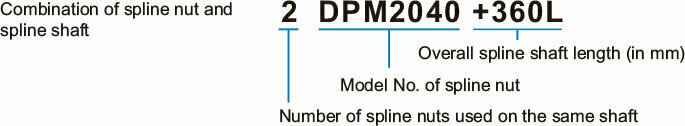

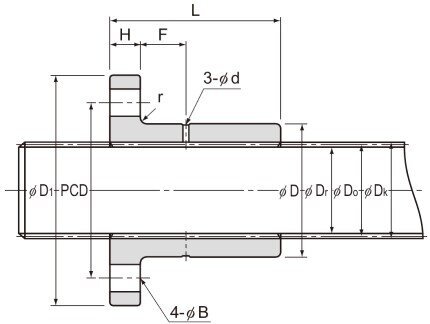

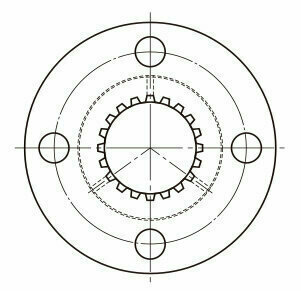

Dimensional drawing/Dimensional table
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member login is required to access Designer, Life Calculator, and 2D/3D CAD donwnloads. Catalogs and manuals are available to everyone.
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| DPM 1220 |  |  |  |  | |
| DPM 1230 | | | |||
| DPM 1520 | | | |||
| DPM 1530 | | | |||
| DPM 1723 | | | |||
| DPM 1735 | | | |||
| DPM 2028 | | | |||
| DPM 2040 | | | |||
| DPM 2536 | | | |||
| DPM 2550 | | | |||
| DPM 3040 | | | |||
| DPM 3056 | | | |||
| DPM 3544 | | | |||
| DPM 3560 | | | |||
| DPM 4050 | | | |||
| DPM 4068 | | | |||
| DPM 4555 | | | |||
| DPM 4575 | | | |||
| DPM 5060 | | | |||
| DPM 5080 | | |
*marks are not available for guest members.
