LM Guide with Linear Encoder SHS-LE
Combines the global standard Model SHS and a THK linear encoder.

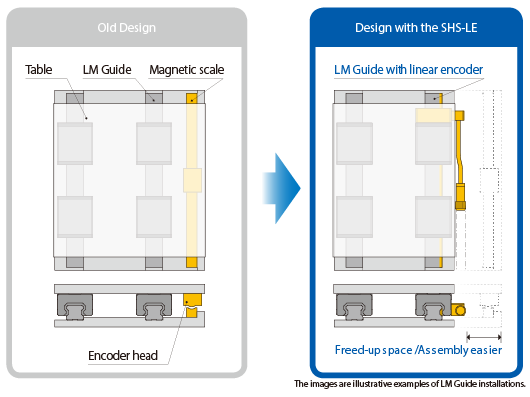

Enables Compact Machine Designs
Makes design and assembly easier because magnetic scale is not required

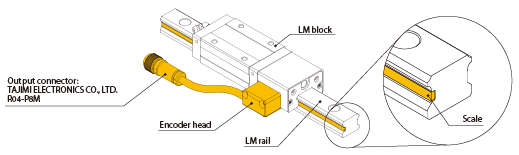

Components/Structure
| Model No. | Block type | ||
|---|---|---|---|
| C/LC | R/LR | V/LV | |
| SHS20LE | ● | - | ● |
| SHS25LE | ● | ● | ● |
| SHS30LE | ● | ● | ● |
| SHS35LE | ● | ● | ● |
| SHS45LE | ● | ● | ● |
Note) This information was originally released in Japanese on August 26, 2019.
