Accessories for Lubrication Special Plumbing Fixtures
We offer a range of special plumbing fixtures that are required for centralized greasing and oil lubrication.
Features
Special Plumbing Fixtures
We offer a range of special plumbing fixtures that are required for centralized greasing and oil lubrication.

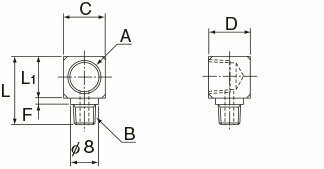

LF-A
LF-B
LF-E
|
Model |
A |
B |
L |
L1 |
F |
C |
D |
|---|---|---|---|---|---|---|---|
|
LF-A |
Rc1/8 (PT1/8) |
M6×0.75 |
20 |
12 |
2 |
12 |
12 |
|
LF-B |
M8×1 |
M6×0.75 |
18.5 |
10 |
2.5 |
9.5 |
18 |
|
LF-E |
Rc1/8 (PT1/8) |
M6×1 |
20 |
12 |
2 |
12 |
12 |
LF-C
LF-D
|
Model |
Screw |
L |
L1 |
C |
D |
|---|---|---|---|---|---|
|
LF-C |
Rc1/8 (PT1/8) |
20 |
12 |
12 |
12 |
|
LF-D |
M8×1 |
18 |
10 |
10 |
18 |
SF-A
SF-B
SF-E
|
Model |
A |
B |
t |
C |
D |
|---|---|---|---|---|---|
|
SF-A |
Rc1/8 (PT1/8) |
M6×0.75 |
2 |
12 |
13.8 |
|
SF-B |
M8×1 |
M6×0.75 |
2 |
10 |
11.5 |
|
SF-E |
Rc1/8 (PT1/8) |
M6×1 |
2 |
12 |
13.8 |
SF-C
SF-D
|
Model |
Screw |
C |
D |
|---|---|---|---|
|
SF-C |
Rc1/8 (PT1/8) |
12 |
13.8 |
|
SF-D |
M8×1 |
10 |
11.5 |

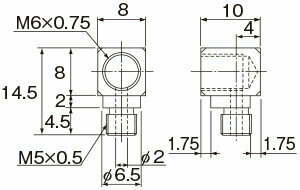

LD
|
Model |
Screw |
|---|---|
|
LD |
M6×0.75 |
Note) Ensure that you do not overtighten or loosen any attached special plumbing fixtures. Doing so may impair functionality.
