Original Grease AFC Grease
AFC grease uses high-grade synthetic oil as its base and a urea-based grease as its consistency enhancer, while also featuring special additives. This gives it excellent fretting resistance.
Features
Features
- Fretting resistance
It is designed to be highly effective in preventing fretting corrosion. - Wide temperature range
Since a high-grade synthetic oil is used as the base oil, the lubricating performance remains high over a wide range of temperatures, from ‒54℃ to 177℃.
Representative Physical Properties
|
Item |
Representative value |
Test method |
|
|
Consistency enhancer |
Urea-based |
||
|---|---|---|---|
|
Base oil |
High-grade synthetic oil |
||
|
Base oil kinematic viscosity: mm2/s (40℃) |
25 |
JIS K 2220 23 |
|
|
Worked penetration (25℃, 60 W) |
288 |
JIS K 2220 7 |
|
|
Mixing stability (100,000 W) |
341 |
JIS K 2220 15 |
|
|
Dropping point: ℃ |
269 |
JIS K 2220 8 |
|
|
Evaporation amount: mass% (99℃, 22 h) |
0.2 |
JIS K 2220 10 |
|
|
Oil separation rate: mass% (100℃, 24 h) |
0.6 |
JIS K 2220 11 |
|
|
Copper plate corrosion (B method, 100℃, 24 h) |
Accepted |
JIS K 2220 9 |
|
|
Low-temperature torque: mN-m (‒20℃) |
Starting |
160 |
JIS K 2220 18 |
|
Rotational |
68 |
||
|
4-ball testing (welding load): N |
3089 |
ASTM D2596 |
|
|
Service temperature range: ℃ |
-54 to 177 |
||
|
Color |
Brown |
||

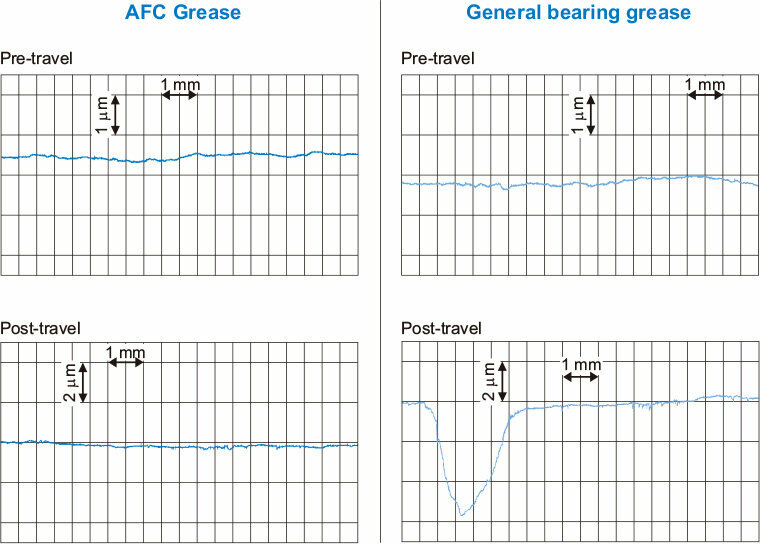

Fretting Resistance Test Data (Comparison of Raceway Conditions)
|
Item |
Description |
|
Stroke |
3mm |
|---|---|
|
Number of strokes per |
200min-1 |
|
Total number of strokes |
2.88×105 (24 hours) |
|
Surface pressure |
1118MPa |
|
Grease quantity |
12cm3(replenished every 8 hours) |
