Original Grease AFG Grease

AFG Grease is a high-grade grease for ball screws that uses high-grade synthetic oil as its base and a urea-based grease as its consistency enhancer. This ensures that it has superior low heatgenerating properties, allowing for use over a wide temperature range—from low to high temperatures.

  • For preventing heat generation by ball screws
  • Micro-vibration
  • Water-resistance
  • For sliding friction
  • Ulea-based

Features

Copy item link
Add item to favorites

Features

Copy item link
Add item to favorites
  • Low heat generation
    Since the viscous resistance is low, the grease generates only a minimal level of heat even during high-speed operation.
  • Low torque properties
    Features a low base oil kinematic viscosity, making it ideal for ball screws.
  • Water resistance
    AFG Grease is a highly water-resistant grease that is less vulnerable to softening and reductions in extreme pressure resistance due to moisture penetration.

Representative Physical Properties

Copy item link
Add item to favorites

Item

Representative value

Test method

Consistency enhancer

Urea-based

Base oil

High-grade synthetic oil

Base oil kinematic viscosity: mm2/s (40°C)

25

JIS K 2220 23

Worked penetration (25°C, 60 W)

285

JIS K 2220 7

Mixing stability (100,000 W)

329

JIS K 2220 15

Dropping point: °C

261

JIS K 2220 8

Evaporation amount: mass% (99°C, 22 h)

0.2

JIS K 2220 10

Oil separation rate: mass% (100°C, 24 h)

0.5

JIS K 2220 11

Copper plate corrosion (B method, 100°C, 24 h)

Accepted

JIS K 2220 9

Low-temperature torque: mN-m (‒20°C)

Starting

170

JIS K 2220 18

Rotational

70

4-ball testing (welding load): N

3089

ASTM D2596

Service temperature range: °C

‒45 to 160

Color

Brown

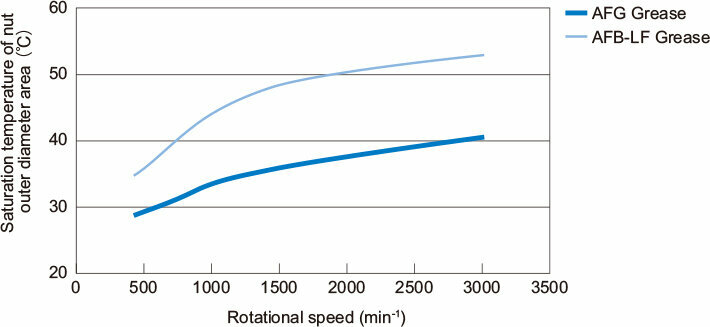

Low Heat Generation Test Data

Copy item link
Add item to favorites

Test conditions

Item Description
Tested model

SBN3210-7RRG0+1094LC5
(Pre-load only)

Rotational speed 400 to 3000min-1
Grease quantity 12cm3 (initial lubrication only)
Temperature measure-
ment point
Nut outer diameter area

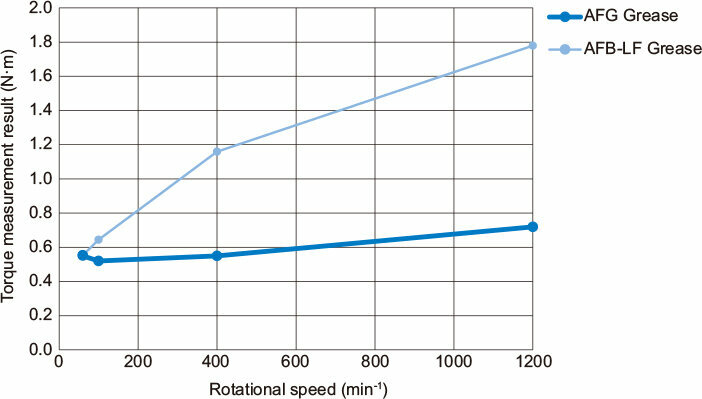

Ball Screw Torque Data

Copy item link
Add item to favorites

Test conditions

Item Description
Tested model

SBN3210-7RRG0+1094LC5
(Pre-load only)

Rotational speed 2 to 1200min-1
Amount of lubricant
injected
13cm3 (initial lubrication only)
