Original Grease AFJ Grease

AFJ grease uses refined mineral oil as its base and a urea-based grease as its consistency enhancer, while also featuring other special additives. This gives it excellent lubrication properties at a wide range of speeds—from low to high.

  • High load
  • Machine stability
  • For a wide range of speeds
  • Micro-vibration
  • For sliding friction
  • Ulea-based

Features

Copy item link
Add item to favorites

Features

Copy item link
Add item to favorites
  • Wide range of speeds
    It provides consistent and even lubrication at a wide range of speeds, from low to high.
  • Wear resistance
    Even at low speeds, it has excellent oil film formation to reduce wear.
  • Vibration resistance
    It reduces wear caused by machine vibration during high-speed operation.

Representative Physical Properties

Copy item link
Add item to favorites

Item

Representative value

Test method

Consistency enhancer

Urea-based

Base oil

Refined mineral oil

Base oil kinematic viscosity: mm2/s (40℃)

20

JIS K 2220 23

Worked penetration (25℃, 60 W)

325

JIS K 2220 7

Mixing stability (100,000 W)

360

JIS K 2220 15

Dropping point: ℃

185

JIS K 2220 8

Evaporation amount: mass% (99℃, 22 h)

0.6

JIS K 2220 10

Oil separation rate: mass% (100℃, 24 h)

7.0

JIS K 2220 11

Copper plate corrosion (B method, 100℃, 24 h)

Accepted

JIS K 2220 9

Low-temperature torque: mN-m (‒20℃)

Starting

38

JIS K 2220 18

Rotational

13

4-ball testing (welding load): N

3089

ASTM D2596

Service temperature range: ℃

-20 to 120

Color

Yellowish brown

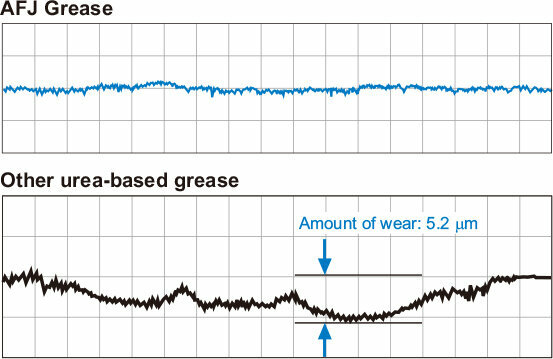

Wear Resistance Test Data (LM Guide Block)

Copy item link
Add item to favorites
Test conditions

Item

Description

Tested model

NRS55B2SS+780LP

Applied load

5.9kN

Feeding speed

0.1m/min

Stroke

200mm

Grease quantity

12cm3 (initial lubrication only)

Test duration

480 hours

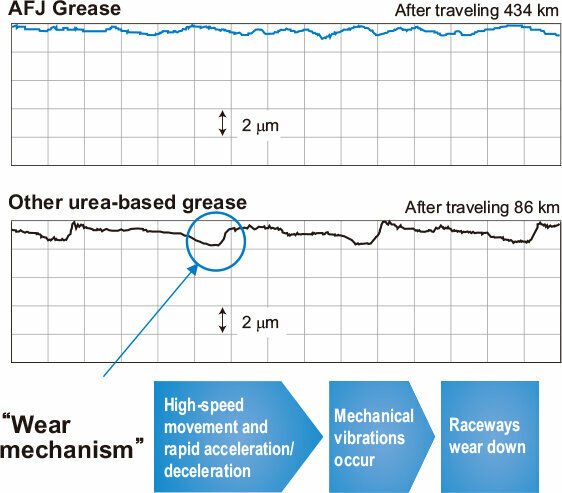

Vibration Resistance Test Data (LM Guide Rail)

Copy item link
Add item to favorites
Test conditions

Item

Description

Tested model

SHS25R1UU+580LP

Applied load

11.05kN(0.35C)

Feeding speed

60m/min

Acceleration/
deceleration

9.8m/s2

Stroke

350mm

Grease quantity

2cm3 (initial lubrication only)

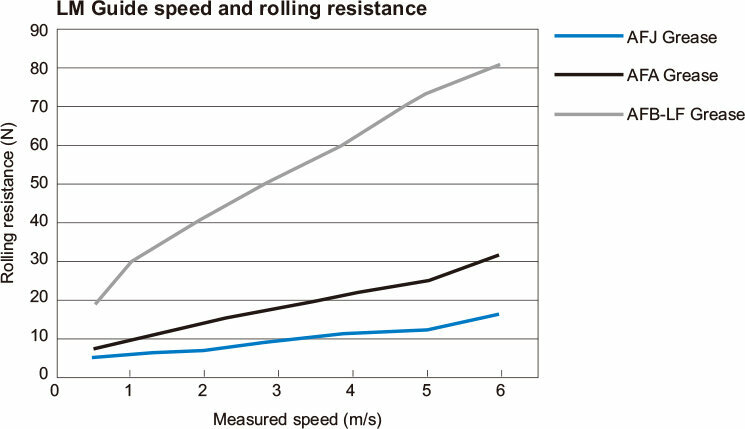

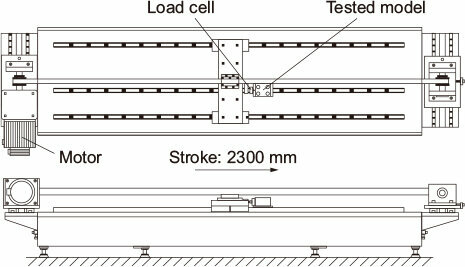

LM Guide Rolling Resistance Measurement Data

Copy item link
Add item to favorites
Test conditions

Item

Description

Tested model

SHS25R1UU+3000L

Applied load

No load

Acceleration

29.4m/s2(3G)

Stroke

2300mm

Test temperature

21°C

Grease quantity

2cm3 (initial lubrication only)

Measurement speed

0.5, 1, 2, 3, 4, 5, 6 m/s
