Precision Ball Screw/Spline Low-Inertia Model NS-V
The NS-V is a combination product featuring a ball screw groove and ball spline groove on a single shaft.
Screwshaftdiameter(mm) : 16,20,25
Types
Highlight feature tags
- Large lead
- No preload
- Rotary nut
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- Large lead
- No preload
- Rotary nut
DN value : 100000
Screwshaftdiameter(mm) :
16,20,25
Features
Improves cycle time of horizontal articulated robots

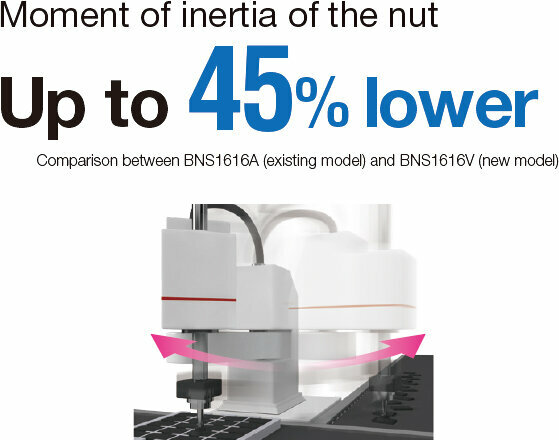

Customers are looking for low-inertia Z axes to improve the cycle time of horizontal articulated robots. This product is more compact and lightweight than its predecessors, achieving low inertia.

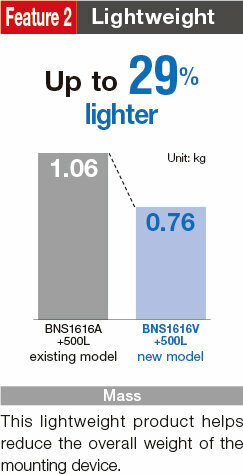

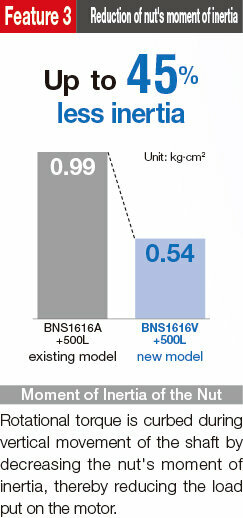

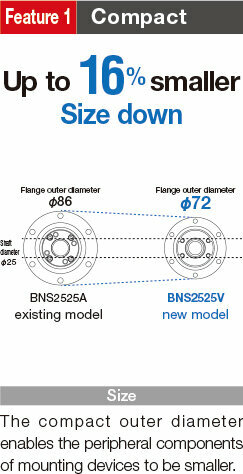

Three Features That Improve Equipment Cycle Time
Advantages of the BNS-V

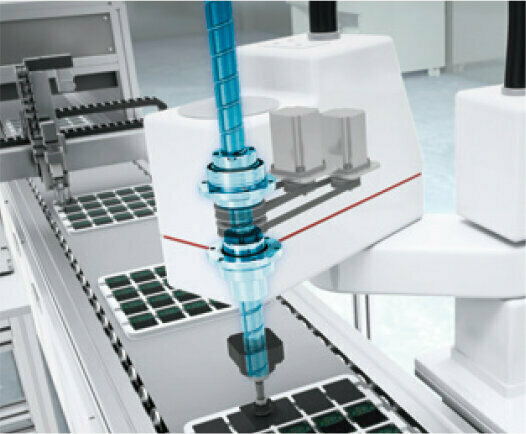

Using the BNS-V for the Z axis of horizontal articulated robots allows for low inertia and weight reduction of the Z axis. This results in high-speed motion, fast starts, quick stops, and reduction of cycle times.
Detailed information for each model number
Dimensional drawing/Dimensional table
