Precision Caged Ball Screw Model SBK

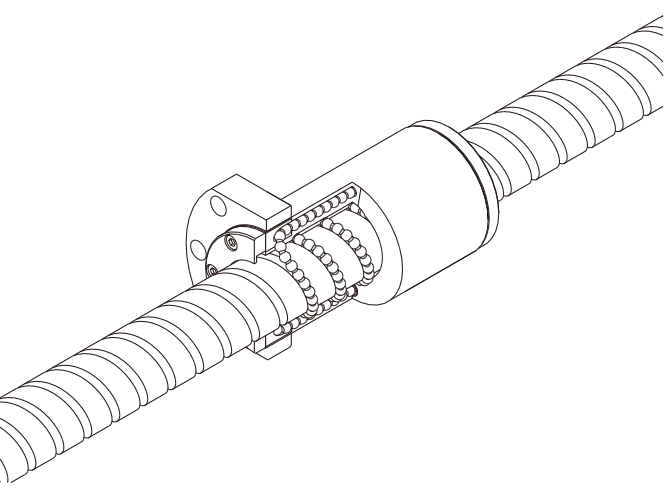

As a result of adopting the offset preloading method, which shifts two rows of grooves of the ball screw nut, a compact structure is achieved.
Screwshaftdiameter(mm) : 15,16,20,25,32,36,40,50,55
Types
Highlight feature tags
- Long-term maintenance free
- High speed
- Large lead
- Preload
- Offset preload
- End-cap type
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- Long-term maintenance free
- Large lead
- Preload
- Offset preload
- High speed
- End-cap type
DN value : 160000
Screwshaftdiameter(mm) :
15,16,20,25,32
- Precision positioning (ball screw)
- Long-term maintenance free
- Large lead
- Preload
- Offset preload
- High speed
- End-cap type
DN value(36,40,50 / 55) : 210000 / 160000
Screwshaftdiameter(mm) :
36,40,50,55
Detailed information for each model number
Dimensional drawing/Dimensional table
