Full-Ball Type Precision Ball Screw Model BNFN-V Model BNFN-V Small
The most common type with a preload provided via a spacer between the two combined ball screw nuts to eliminate the backlash. It can be mounted using the bolt holes drilled on the flange.The Model BNFN-V has improved DN values in comparison with the conventional Model BNFN. (DN values: Small: 100,000, Medium: 130,000)
DN value : 100000
Screw shaft diameter (mm) :
16,28,32
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

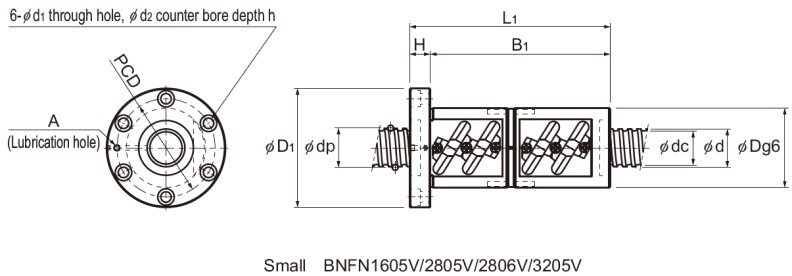

- Dimensional drawing/Dimensional table
- Model Number Coding
- Maximum Manufacturing Length of the Screw Shaft
Optional
Contamination Protection
- Contamination Protection Seal for Ball Screws Labyrinth seal
- Contamination Protection Seal for Ball Screws Brush seal
- Wiper Ring
- Canvas seal
- Thin Film Seal
- Dust Cover for Ball Screws
Lubrication
- QZ Lubricator
Rustprevention
- Surface Treatment
Other
- Dimensions of Each Model with an Option Attached
- Additional Machining for Shaft Ends
Display result
- Detailed information
- Optional
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* |
Catalog Download |
Manual Download |
|---|---|---|---|---|---|
| BNFN 1605V-5 |
 |
 |
 |
 |
 |
| BNFN 2805V-7.5 |
|
|
|||
| BNFN 2806V-7.5 |
|
|
|||
| BNFN 3205V-7.5 |
|
|
*marks are not available for guest members.
