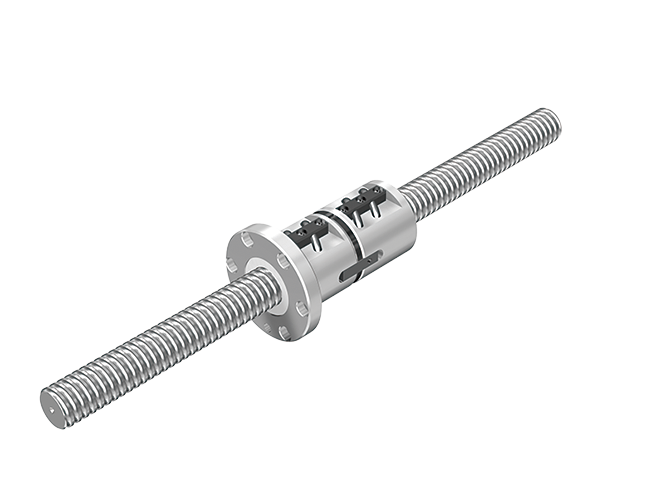

Full-Ball Type Precision Ball Screw Double-nut Preload Model BNFN
The most common type with a preload provided via a spacer between the two combined ball screw nuts to eliminate backlash.
Screwshaftdiameter(mm) : 55,63,70,80,100
Types
Highlight feature tags
- Preload
- Return-pipe type
- Double nut
- Precision positioning (ball screw)
- Double nut preload
- Precision positioning (ball screw)
- Preload
- Double nut preload
- Return-pipe type
- Double nut
DN value : 70000
Screwshaftdiameter(mm) :
55,63,70,80,100
Detailed information for each model number
Dimensional drawing/Dimensional table
