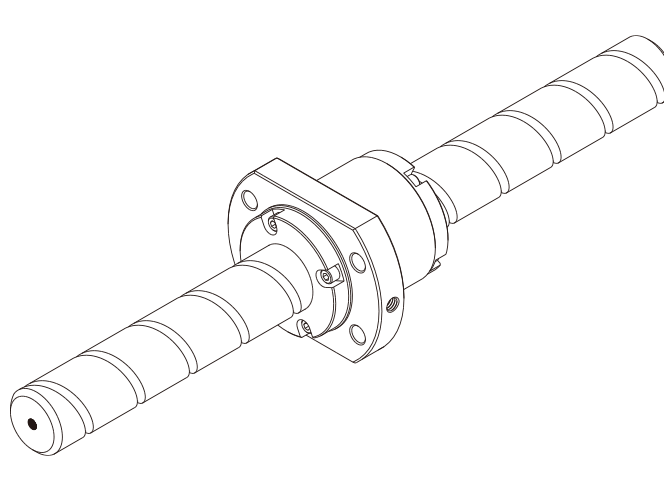

Full-Ball Type Precision Ball Screw Large Lead Model BLK
With this Ball Screw, the shaft diameter is the same as the lead dimension.
Screwshaftdiameter(mm) : 08,15,16,20,25,32,36,40,50
Types
Highlight feature tags
- Large lead
- No preload
- End-cap type
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- Large lead
- No preload
- End-cap type
DN value : 70000
Screwshaftdiameter(mm) :
08,15,16,20,25,32,36,40,50
Detailed information for each model number
Dimensional drawing/Dimensional table
