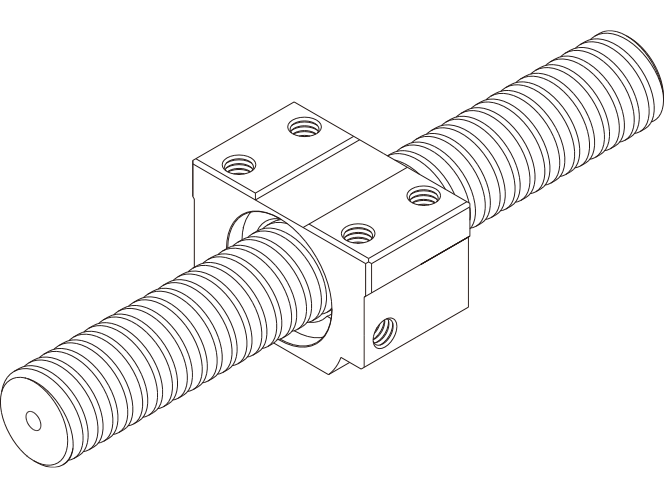

Full-Ball Type Precision Ball Screw Square Nut Model BNT
Since mounting screw holes are drilled on the square ball screw nut, this model can compactly be mounted on the machine without a housing.
Screwshaftdiameter(mm) : 14,16,18,20,25,28,32,36,45
Types
Highlight feature tags
- No preload
- Return-pipe type
- Square nut
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- No preload
- Return-pipe type
- Square nut
DN value : 70000
Screwshaftdiameter(mm) :
14,16,18,20,25,28,32,36,45
Detailed information for each model number
Dimensional drawing/Dimensional table
