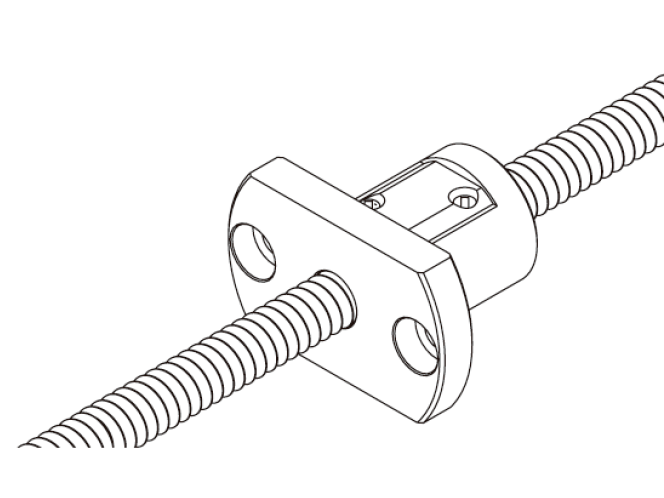

Full-Ball Type Precision Ball Screw Model MBF
A miniature type with a screw shaft diameter of ø 4 to ø 14 mm and a lead of 1 to 4mm.
Screwshaftdiameter(mm) : 04,06,08,10,12,14
Types
Highlight feature tags
- Miniature
- No preload
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- No preload
- Miniature
DN value : 70000
Screwshaftdiameter(mm) :
04,06,08,10,12,14
