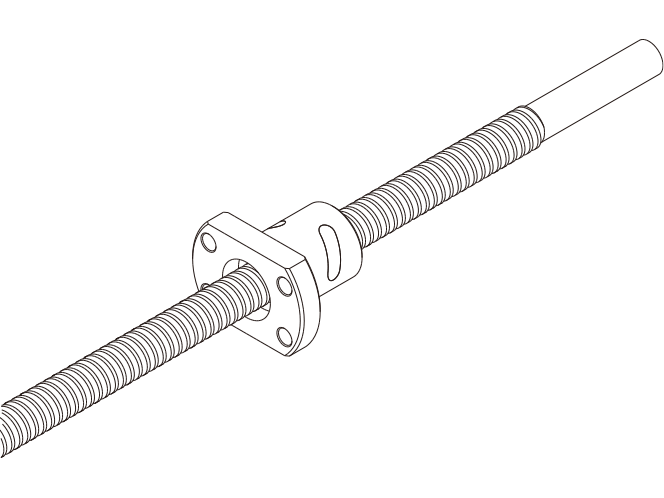

Full-Ball Type Precision Ball Screw Miniature Model MDK
A miniature type with a screw shaft diameter of ø 4 to ø 14 mm and a lead of 1 to 5mm.
Screwshaftdiameter(mm) : 04,06,08,10,12,14
Types
Highlight feature tags
- Miniature
- No preload
- Deflector type
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- No preload
- Miniature
- Deflector type
DN value : 70000
Screwshaftdiameter(mm) :
04,06,08,10,12,14
Detailed information for each model number
Dimensional drawing/Dimensional table
