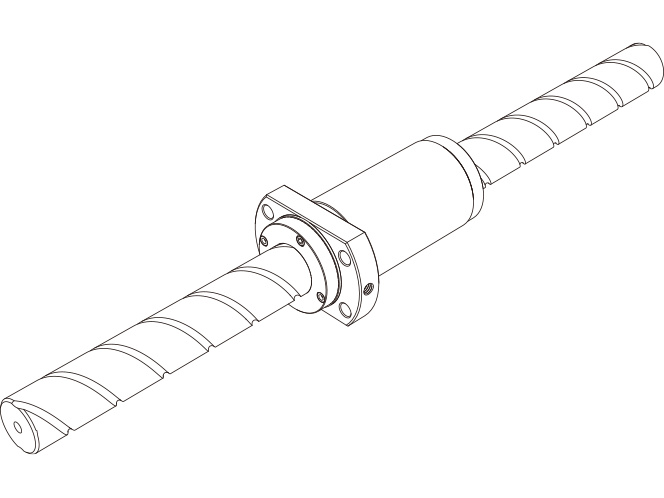

Full-Ball Type Precision Ball Screw Super Lead Model WGF
With this Ball Screw, the lead length is 1.5 to 3 times greater than the shaft diameter.
Screwshaftdiameter(mm) : 08,10,13,15,20,25,30,40,50
Types
Highlight feature tags
- Super lead
- No preload
- End-cap type
- Precision positioning (ball screw)
- Precision positioning (ball screw)
- Super lead
- No preload
- End-cap type
DN value : 70000
Screwshaftdiameter(mm) :
08,10,13,15,20,25,30,40,50
Detailed information for each model number
Dimensional drawing/Dimensional table
