Medium Torque Type Ball Spline Medium Torque Model LF Model LF
The spline nut can be attached to the housing via the flange, making assembly simple. It is optimal for locations where the housing may be deformed if a keyway is machined on its surface, and where the housing width is small.
basic load ratings(kN) : Basic dynamic load rating 1.18 to 60.9 / Basic static load rating 2.16 to 94.5
Spline shaft diameter (mm) :
6,8,10,13,16,20,25,30,40,50,60
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

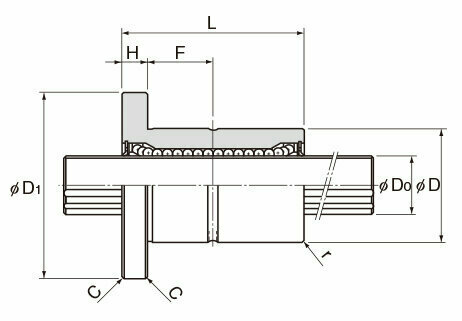

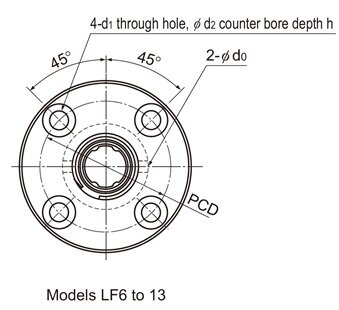

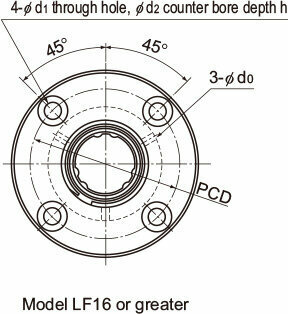

- Dimensional drawing/Dimensional table

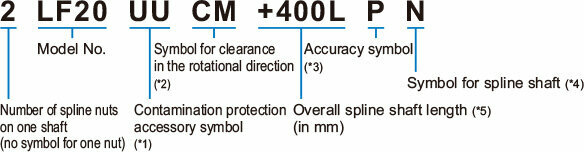

- Model Number Coding
