Medium Torque Type Ball Spline Compact Model LFK-X
The flange is similar to the Model LF-X, but flattened in four places. Compared to models with round flanges, its core height is lower, and it allows for more compact designs. The Model LFK-XL is suitable for moment loads or torque and overhang loads that exceed those tolerated by the Model LFK-X.
Models LFK5X and 6X are made of stainless steel, which has high corrosion resistance.
Spline shaft diameter (mm) : 5,6,8,10,13,16,20,25,30
Types
Highlight feature tags
- Lightweight
- Compact
- Flanged type
- Solid spline shaft
- Hollow spline shaft
- Lightweight
- Compact
- Flanged type
- Solid spline shaft
- Hollow spline shaft
basic load ratings(kN) : Basic dynamic load rating 0.56 to 20.8 / Basic static load rating 0.85 to 34.0
Spline shaft diameter (mm) :
5,6,8,10,13,16,20,25,30
Features
Allows for Compact Designs

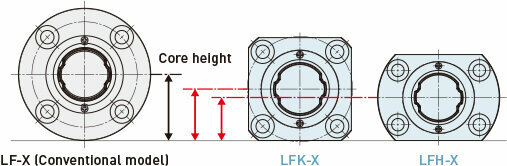

Models LFK-X and LFH-X are designed with a lower core height than the conventional Model LF-X. This allows for more compact mounting and peripheral components.
Weight Lighter

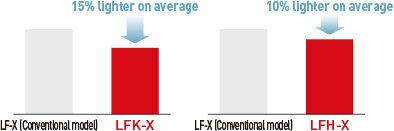

The modified flange shape makes the weight of the spline nut lighter than the round-flanged Model LF-X, reducing the weight of devices.
