Medium Torque Type Ball Spline Medium Torque Model LT Model LT
The most compact type with a straight cylindrical spline nut. When transmitting a torque, a key is driven into the body.
basic load ratings(kN) : Basic dynamic load rating 0.44 to 136.2 / Basic static load rating 0.61 to 195
Spline shaft diameter (mm) :
4,5,6,8,10,13,16,20,25,30,40,50,60,80,100
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
- Dimensional drawing/Dimensional table
- Model LT with Recommended Shaft End Shape

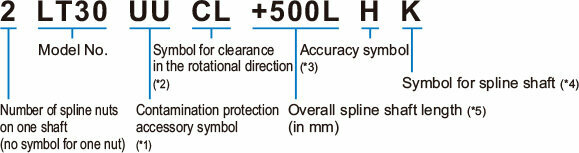

- Model Number Coding
