Rotary Ball Spline with Support Bearing Rotary Model LTR-V

This lightweight, compact unit-type ball spline features support bearings that are directly integrated with the outer surface of the LT-X spline nut.

Spline shaft diameter (mm) : 16,20,25

Types

Highlight feature tags

basic load ratings(kN) : Basic dynamic load rating 8.4 to 15.9 / Basic static load rating 13.4 to 26.2
Spline shaft diameter (mm) : 16,20,25

The Model LTR-V is more compact than the previous Model LTR-A because it uses a Model LT-X for the ball spline.

Unit: mm

Model No.	Outer diameter of support (D)		Outer diameter of flange (D₁)		Pulley mount (D₆)
Model No.	Compared to the previous product		Compared to the previous product		Compared to the previous product
Previous LTR 16A	48	13% smaller	64	16% smaller	36	10% smaller
LTR 16V	42	13% smaller	54	16% smaller	32.5	10% smaller
Previous LTR 20A	56	14% smaller	72	11% smaller	43.5	17% smaller
LTR 20V	48	14% smaller	64	11% smaller	36	17% smaller
Previous LTR 25A	66	15% smaller	86	16% smaller	52	16% smaller
LTR 25V	56	15% smaller	72	16% smaller	43.5	16% smaller

The Model LTR-V is more lightweight than the previous Model LTR-A because it uses a Model LT-X for the ball spline.

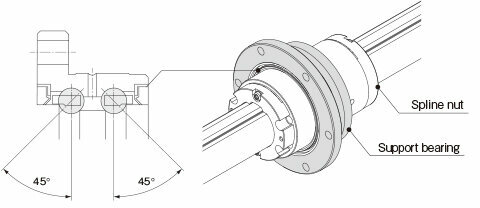

The support bearing uses a 45° contact angle that is resistant to moment loads.

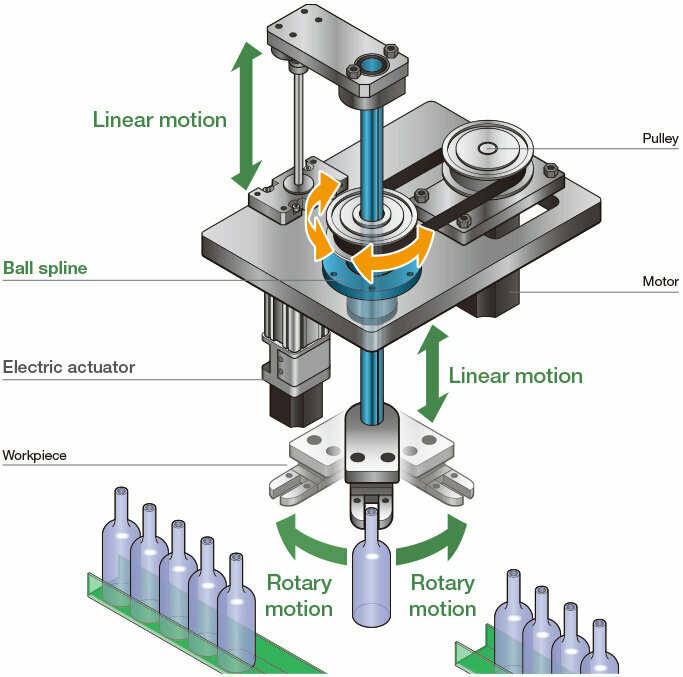

Ball splines can transmit torque with one shaft, enabling operations that combine linear motion and rotation.
