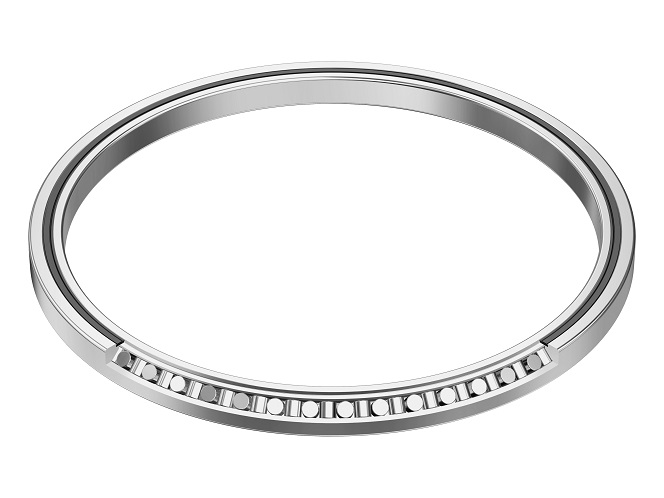

Cross-Roller Ring Models RAU and RAUV Model RAUV (Small-Diameter, 5 mm Thin Type)
The extremely small cross-sectional area allows it to be used in lightweight, compact devices.The integrated inner/outer ring structure can be used for both inner and outer ring rotation.There is a 5 mm thin type and an RA interchangeable type. The thin type product lineup starts at a micro-sized 10 mm inner diameter.
Full-Roller products are suited to low-speed rotary operations with higher loads, and they are also compatible with all-metal specifications.
Basic load rating (radial) (kN): Basic dynamic load rating 1.12 to 3.37 / Basic static load rating 0.809 to 6.63
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information

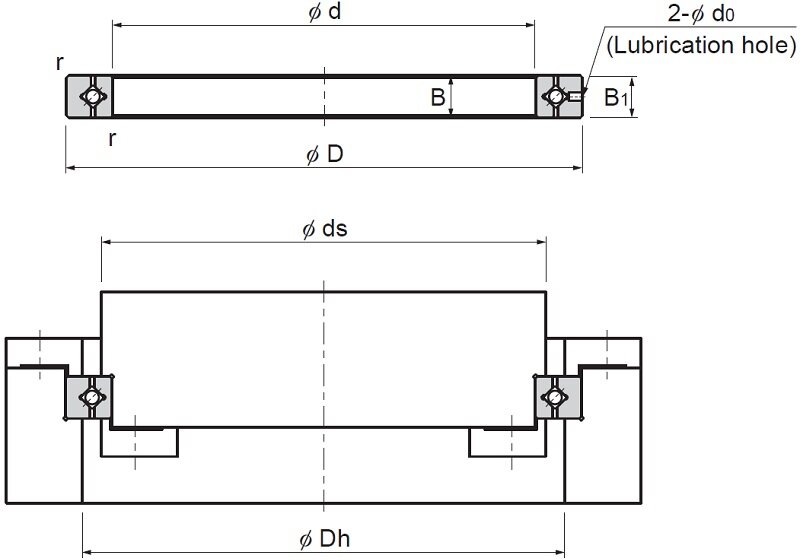

- Dimensional drawing/Dimensional table
Detailed information
Dimensional drawing/Dimensional table

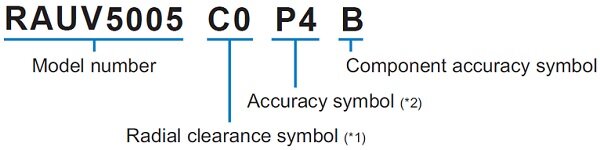

Model number coding
(*1) See Radial Clearance Standard
(*2) See Accuracy Standard
- Note 1: Precautions for the Model RAU (Small-Diameter, 5 mm Thin Type) *Seals are not supported.*Only available with C0 radial clearance.*Only available with normal grade accuracy (0).
- Note 2: For stainless steel types, please consult THK. If there are no seals, all components (excluding grease) will be metal.
