Cross-Roller Ring Models RBU and RBUV

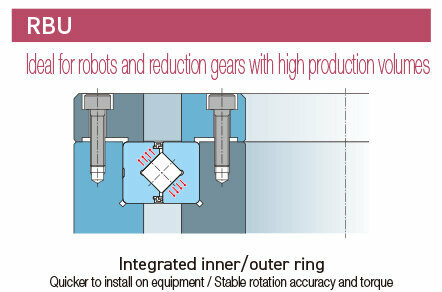

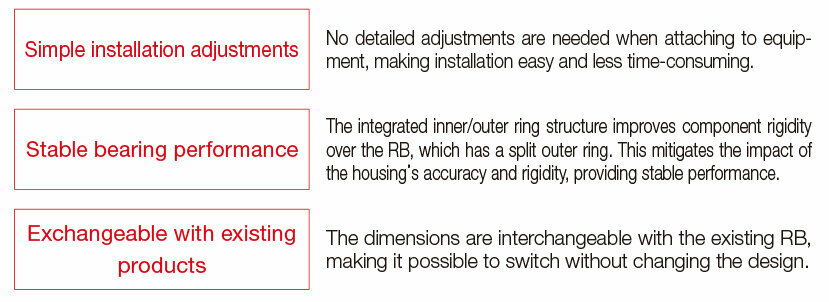

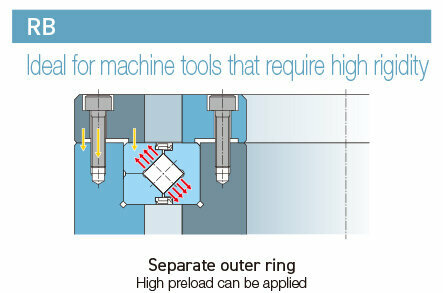

The integrated inner/outer ring structure improves component rigidity over the RB, which has a split outer ring. This mitigates the impact of the housing’s accuracy and rigidity, providing stable performance.
Products with spacer retainers (Model RBU) have a low friction coefficient and demonstrate highly stable rotational torque. Full-Roller products (Model RBUV) are suited to low-speed rotary operations with higher loads, and they are also compatible with all-metal specifications.

Precautions on Use

Types

Highlight feature tags

Basic load rating (radial) (kN): Basic dynamic load rating 3.23 to 41.7 / Basic static load rating 3.1 to 82.9

Basic load rating (radial) (kN): Basic dynamic load rating 4.62 to 54.6 / Basic static load rating 4.69 to 113

Features

Structure and Features

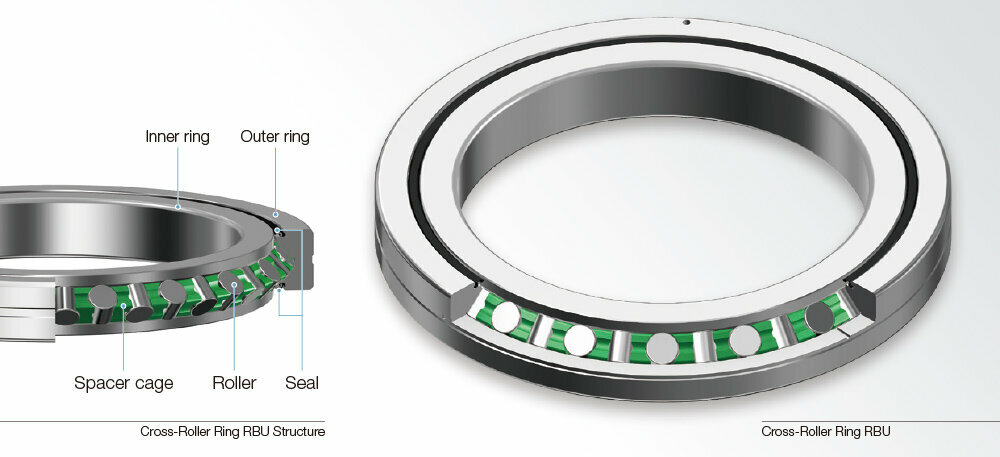

Because the RBU features cylindrical rollers that are arranged orthogonally between spacer cages inside a 90° V-shaped raceway, a single bearing can handle radial, axial, and moment loads in all directions. In addition, it can be used for both inner-ring and outer-ring rotation because neither the inner nor outer ring has a split structure.

Detailed information for each model number

Dimensional drawing/Dimensional table
