Cross-Roller Ring Standard Model RE Model RE-H
Main dimensions are the same as model RB.This model is used in locations where the rotational accuracy of the outer ring is required.
Improved rigidity and load rating with the same dimensions as existing products.
Basic load rating (radial) (kN): Basic dynamic load rating 18.8 to 299 / Basic static load rating 23.5 to 817
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information

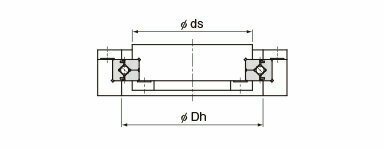

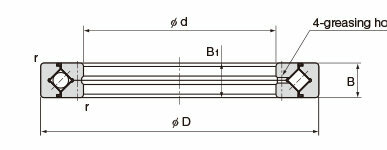

- Dimensional drawing/Dimensional table
Detailed information
Dimensional drawing/Dimensional table
Notes on dimensional table
- Note1) The model number of a type with seals attached is RE…HUU.
If a certain level of accuracy is required, this model is used for outer ring rotation. - Note2) (a) and (b) dimensions of the greasing hole in the detailed diagram are reference values.

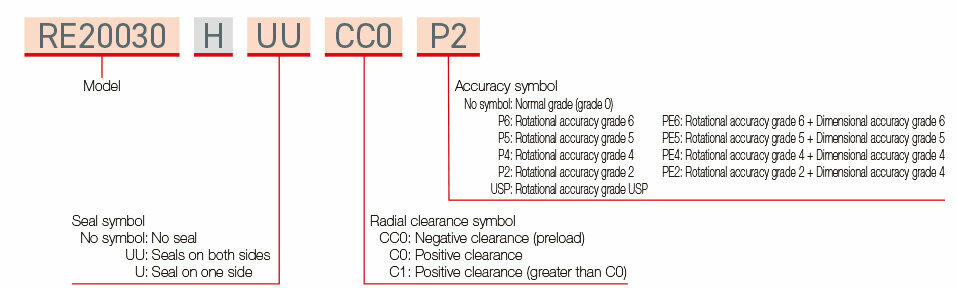

Model number coding
