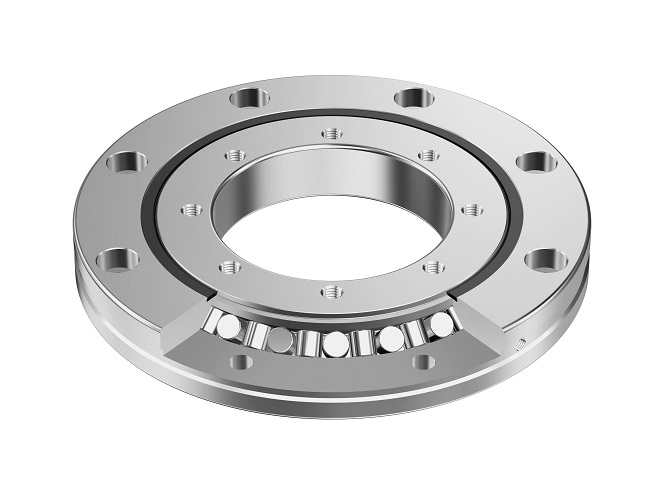

Cross-Roller Ring Standard Models RU and RUV

The integrated design of the unit’s inner and outer rings, with mounting holes on both rings,eliminates the need for a special flange or housing and enables easy installation.
Products with spacer retainers (Models RU and RU-H) have a low friction coefficient and demonstrate highly stable rotational torque. Full-Roller products (Model RUV) are suited to low-speed rotary operations with higher loads, and they are also compatible with all-metal specifications.

  • High rigidity
  • Inner ring rotation
  • Outer ring rotation
  • Integrated inner / Outer ring type
  • Rotation accuracy

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Spacer Retainer
  • Full Roller
  • Special Environment
  • High rigidity
  • Inner ring rotation
  • Outer ring rotation
  • Integrated inner / Outer ring type
  • Rotation accuracy
  • High load
Model RU
  • Spacer Retainer
  • High rigidity
  • Inner ring rotation
  • Outer ring rotation
  • Integrated inner / Outer ring type
  • Rotation accuracy

Basic load rating (radial) (kN): Basic dynamic load rating 7.35 to 222 / Basic static load rating 8.35 to 473

Model RU-H
  • Spacer Retainer
  • High rigidity
  • Inner ring rotation
  • Outer ring rotation
  • Integrated inner / Outer ring type
  • Rotation accuracy
  • High load

Basic load rating (radial) (kN): Basic dynamic load rating 19.8 to 261 / Basic static load rating 25.1 to 560

Model RUV
  • Full Roller
  • Special Environment
  • High rigidity
  • Inner ring rotation
  • Outer ring rotation
  • Integrated inner / Outer ring type
  • Rotation accuracy
  • High load

Basic load rating (radial) (kN): Basic dynamic load rating 9.45 to 280 / Basic static load rating 11.1 to 614

Detailed information for each model number

Copy item link
Add item to favorites

Dimensional drawing/Dimensional table

Copy item link
Add item to favorites
